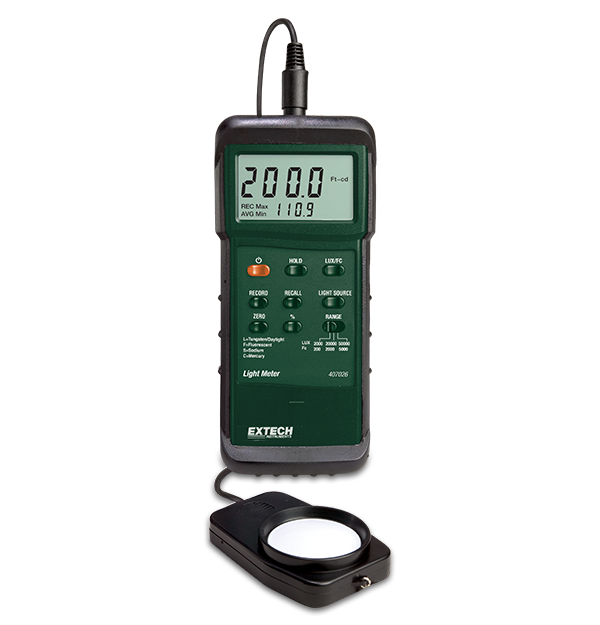

Extech 407026
Heavy Duty Light Meter with PC Interface
This 407026 Heavy Duty Light Meter has 4 lighting type settings for enhanced accuracy (Tungsten/Daylight, Fluorescent, Sodium, Mercury). Additional features include Data Hold, Min/Max/Average, Auto power off and a % reading of the differential from a reference point. Built-in RS-232 interface with optional Data Acquisition Software and Data logger. Complete with 9V battery, light sensor with 45" (1.1m) cable, protective cover, and holster with stand.
Specifications
| General | |
|---|---|
| Cosine and Color Corrected | Yes |
| Light [Foot Candle] | 200, 2000, 5000Fc |
| Light [Foot Candle] Basic Accuracy | ±4% full scale |
| Light [Foot Candle] Max Resolution | 1Lux |
| Light [Lux] | 2000, 20000, 50000Lux |
| Light [Lux] Basic Accuracy | ±4% full scale |
| PC Interface | Yes |
| Additional Details | |
|---|---|
| Certifications | 407026-NIST_S: CE, NIST 407026_S: CE |
| Dimensions | 7 × 2.9 × 1.3" (178 × 74 × 33mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 1.6lbs (726g) |
Resources & Support
Certification
Extech 407026 Declaration of Conformity
User Manual
Extech 407026 User Manual GB
Datasheet
Extech 407026 Datasheet
User Manual
Extech 407026 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
