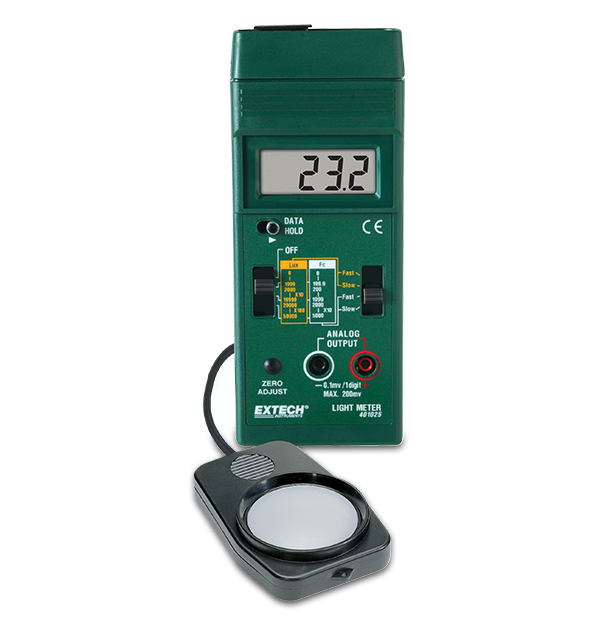

401025 is a Foot Candle/Lux Meter which measures light level to 5000FC (foot-candles) and 50,000 Lux with a 5% accuracy using a precision photo diode and color correction filter. Meter features fast/slow response time and an analog output (1mV per count) for capturing readings to a recorder. Comes complete with 9-Volt battery.
Specifications
| General | |
|---|---|
| Analog Output | Yes |
| Cosine and Color Corrected | Yes |
| Fast Response | 0.2s |
| Light [Foot Candle] | 200, 2000, 5000Fc |
| Light [Foot Candle] Basic Accuracy | ±5% full scale |
| Light [Foot Candle] Max Resolution | 1 Lux |
| Light [Lux] | 2000, 20000, 50000 Lux |
| Slow Response | 0.4s |
| Additional Details | |
|---|---|
| Certifications | 401025-NIST_S: CE, NIST 401025_S: CE |
| Dimensions | 6.4 × 2.8 × 1.2" (163 × 70 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 8.3oz (220g) |
Resources & Support
User Manual
401025_UM_en-US
Certification
Extech 401025 Declaration of Conformity
Datasheet
Extech 401025 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
