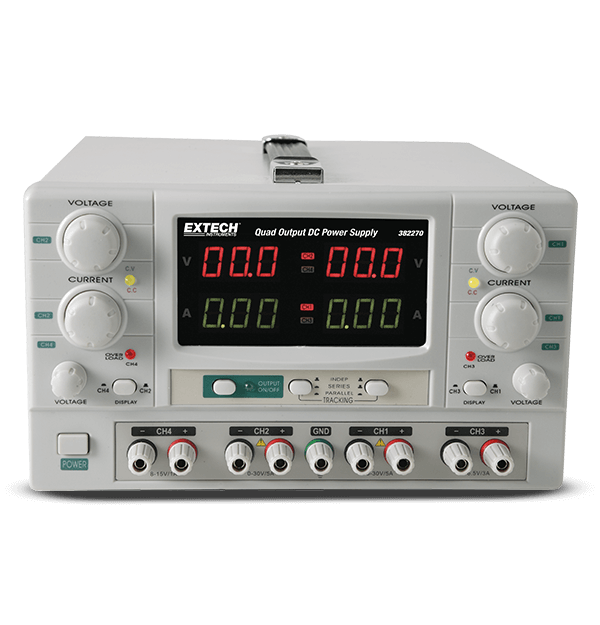

382270 is a Quad Output DC Power Supply has two 0 to 30V/0 to 5A outputs plus two fixed auxiliary outputs of 3 to 6.5V/3A and 15V/1A. The two 30V outputs can be combined in parallel for 10A or in series for 60V. Comes complete with 4 pairs of test leads (banana plug to alligator clip) and an AC cord.
Specifications
| General | |
|---|---|
| Line Current Regulation | 2mA ±3mA |
| Line Voltage Regulation | 0.1mV ±3mV |
| Load Current Regulation | 2mA ±5mA |
| Load Voltage Regulation | 0.5mV ±3mV |
| Output Current | 0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed) |
| Output Voltage | 0 to 30V, 0 to 30V, 3 to 6.5V, 8 to 15V |
| Ripple and Noise | <0.5mVrms |
| Additional Details | |
|---|---|
| Dimensions | 10.2 × 6.3 ×14.5" (260 x 160 × 370mm) |
| Power | 110 to 240VAC, 50/60Hz |
| Warranty | 2 years |
| Weight | 26.5lbs (12kg) |
Resources & Support
Certification
Extech 382270 Declaration of Conformity
User Manual
Extech 382270 User Manual GB
Datasheet
Extech 382270 Datasheet
User Manual
Extech 382270 User Manual
