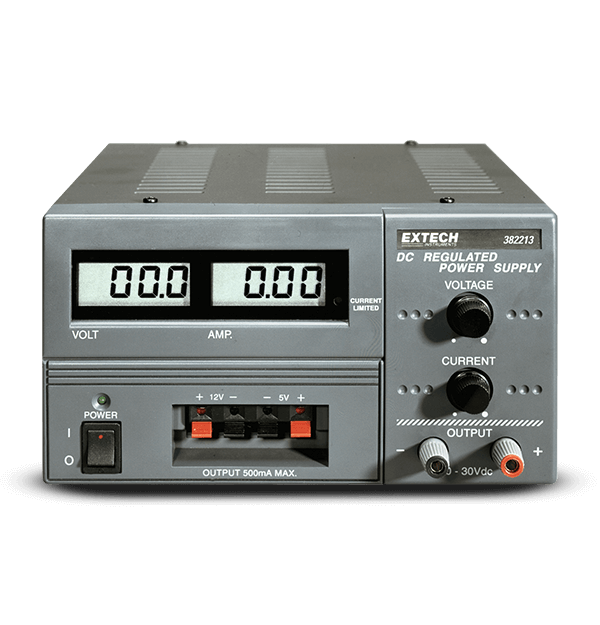

Ideal for a wide range of applications including bench testing, field service, hobby, and telecommunication equipment, the solid state, compact Extech 382213 Digital Triple Output DC Power Supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage. It offers three choices of power output: adjustable 0 to 30 Volt, 0 to 3 Amp, plus fixed 5 and 12 Volt. Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5 and 12 Volt outputs, and a current-limited front panel LED indicator. It complete with a power cord.
Specifications
| General | |
|---|---|
| Fixed Outputs | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Line Voltage Regulation | <0.05% + 10mV |
| Load Voltage Regulation | <0.05% + 10mV |
| Output Current | 0 to 3A |
| Output Voltage | 0 to 30V DC |
| Ripple and Noise | <5mV |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6 × 5.6 × 9.5" (152 × 142 × 242) |
| Power | 110/220VAC 50/60Hz |
| Warranty | 2 years |
| Weight | 11lbs. (5kg) |
Resources & Support
User Manual
Extech 382203 382213 User Manual
Certification
Extech 382213 Declaration of Conformity
Datasheet
Extech 382203-382213 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
