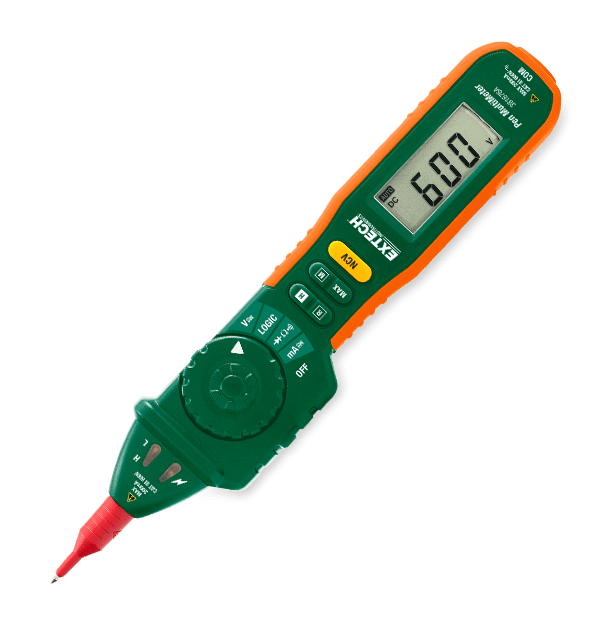

The Extech 381676A is a Pen Styled Multimeter with a Built in NCV detector. The 381676A features nine functions including AC/DC voltage to 600V, AC/DC Current to 200mA, Resistance, as well as Logic, Diode and Continuity tests. This meter has an easy to use rotary dial with alligator clips for one handed operation. Its convenient built in non-contact voltage detector allows for quick detection of live voltage. The 381676 comes complete with test leads, alligator clips, batteries and manual.
Specifications
| General | |
|---|---|
| AC Current | 20mA, 200mA |
| AC Current Basic Accuracy | ±2% |
| AC Current Max Resolution | 0.01mA |
| AC Voltage | 200mV, 2, 20, 200, 600V |
| AC Voltage Basic Accuracy | ±0.8% |
| AC Voltage Max Resolution | 0.1mV |
| Continuity | Audible beeper <50Ω |
| DC Current | 20mA, 200mA |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 0.01mA |
| DC Voltage | 200mV, 2, 20, 200, 600V |
| DC Voltage Basic Accuracy | ±0.7% |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | 1mA @ 1.5V approx |
| Logic Test | 0 to 1.5V (Green LED), 1.5 to 3.5V (LED Off ), 3.5 to 5V (Red LED) |
| Non_Contact Voltage [NCV] Detector | >110VAC |
| Resistance | 200, 2k, 20k, 200k, 2M, 20MΩ |
| Resistance Max Resolution | 0.1Ω |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.2 × 1.5 × 1.1” (208 × 38 × 29mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 4.6oz (129g) |
