Extech 380976-K
Single Phase/Three Phase 1000A AC Power Clamp Meter Kit

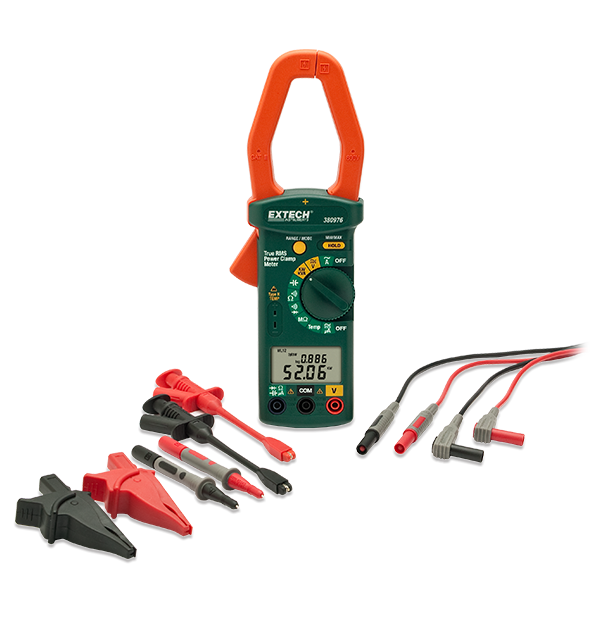

The 380976-K is a Single Phase/3 Phase 1,000 Amp AC Power Clamp Meter Kit. Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. Auto Detect AC/DC Voltage measurements with simultaneous frequency display. In addition, the supplied test lead kit includes two CAT IV 72" test leads, 2 modular test probe handles, 2 plunger activated jaw clips, and 2 extra-large alligator clips. Complete with test lead kit, Type K probe, carrying case and 9V battery.
Specifications
| General | |
|---|---|
| AC Current | 1000A |
| AC Current Basic Accuracy | ±2% |
| AC Current Max Resolution | 10mA |
| AC Microcurrent | 1000µA |
| AC Microcurrent Basic Accuracy | ±1% |
| AC Microcurrent Max Resolution | 10nA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1% |
| AC Voltage Max Resolution | 0.1mV |
| Apparent Power | 600kVA |
| Apparent Power Basic Accuracy | ±2% |
| Apparent Power Max Resolution | 100VA |
| Capacitance | 7000µF |
| Capacitance Max Resolution | 1nF |
| DC Microcurrent | 1000µA |
| DC Microcurrent Basic Accuracy | ±1% |
| DC Microcurrent Max Resolution | 10nA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±1% |
| DC Voltage Max Resolution | 0.1mV |
| Frequency | 40Hz to 1kHz |
| Frequency Basic Accuracy | ±0.5% |
| Frequency Max Resolution | 0.1Hz |
| Horsepower | 800HP |
| Horsepower Basic Accuracy | ±5% |
| Horsepower Max Resolution | 0.01HP |
| Low Resistance | 1000kΩ |
| Low Resistance Basic Accuracy | ±1% |
| Low Resistance Max Resolution | 0.1Ω |
| Phase | -60 to +60° |
| Phase Basic Accuracy | ±6° |
| Phase Max Resolution | 0.1° |
| Reactive Power | 600kVAR |
| Reactive Power Basic Accuracy | ±5% |
| Reactive Power Max Resolution | 10VAR |
| Resistance | 100MΩ |
| Resistance Max Resolution | 1kΩ |
| Temperature [Type K] Max Resolution | -58 to 1000°F (-50 to 900°C) |
| Temperature [Type N] | ±1% |
| Temperature [Type N] Basic Accuracy | 0.1°F/°C |
| True Power | 600kW / 10W |
| True Power Basic Accuracy | ±5% |
| True Power Max Resolution | 10W |
| Additional Details | |
|---|---|
| Certifications | 380976-K-NIST_S: CE,UL, NIST 380976-K_S: CE,UL |
| Dimensions | 9 × 3 × 1.6" (228 × 76 × 39mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 16.4oz (465g) |
