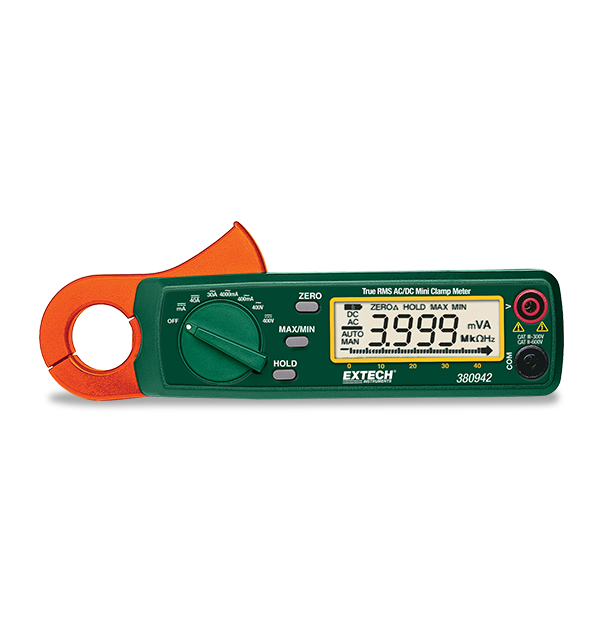

Extech 380942
30A True RMS AC/DC Mini Clamp Meter
The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter. The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AA batteries, soft carrying case, and user manual.
Specifications
| General | |
|---|---|
| AC Current | 400mA, 4A, 30A |
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.1mA |
| AC Voltage | 400V |
| AC Voltage Basic Accuracy | ±(2.0% of reading + 5 digits) |
| AC Voltage Max Resolution | 0.1V |
| DC Current | 4A, 40A |
| DC Current Max Resolution | 0.001A |
| DC Voltage | 400V |
| DC Voltage Basic Accuracy | ±(1.0% of reading + 2 digits) |
| DC Voltage Max Resolution | 0.1V |
| Jaw Size | 0.9" (23mm), conductors up to 4/0 AWG |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | 380942-NIST_S: CE, UL, NIST 380942_S: CE, UL |
| Dimensions | 7 × 1.8 × 1.3" (178 × 45 × 32mm) |
| Display | 4000-count segment LCD |
| Safety Category | CAT III-300V |
| Warranty | 2 years |
| Weight | 8oz (225g) |
