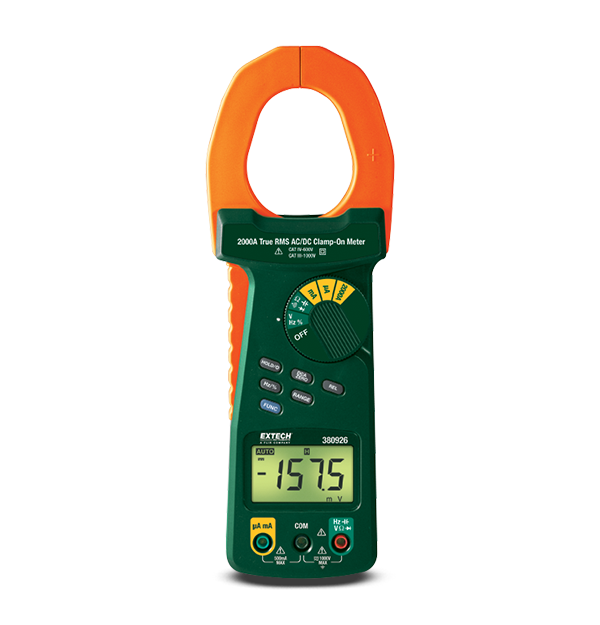

Extech 380926
2000A True RMS AC/DC Clamp Meter
The Extech 380926 is a category IV, 2000-Amp, TRMS AC/DC clamp meter with a rugged 2 in. jaw to accommodate two 500 MCM cables. A built-in full-function DMM can measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function. Complete with test leads and 9V battery.
Specifications
| General | |
|---|---|
| AC Current | Clamp: 400A, 2000A; DMM: 400µA, 4000µA, 40mA, 400mA |
| AC Current Basic Accuracy | ±(2% of reading + 5 digits) |
| AC Current Max Resolution | Clamp: 0.1A; DMM: 0.1µA |
| AC Voltage | 4V, 40V, 400V, 1000V |
| AC Voltage Basic Accuracy | ±(1.2% of reading + 5 digits) |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 50nF, 500nF, 5.0µF, 50µF |
| Capacitance Max Resolution | 10pF |
| Continuity | Yes |
| DC Current | Clamp: 400.0A, 2000A; DMM: 400µA, 4000µA, 40mA, 400mA |
| DC Current Basic Accuracy | ±(2% of reading + 5 digits) |
| DC Current Max Resolution | Clamp: 0.1A; DMM: 0.1µA |
| DC Voltage | 400mV, 4.0V, 40V, 400V, 1000V |
| DC Voltage Basic Accuracy | ±(1% of reading + 2 digits) |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Duty Cycle | 1% to 99% |
| Duty Cycle Basic Accuracy | ±(1% of reading + 5 digits) |
| Duty Cycle Max Resolution | 0.1% |
| Frequency | 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 100kHz |
| Frequency Basic Accuracy | ±(1% of reading + 5 digits) |
| Frequency Max Resolution | 0.001Hz |
| Jaw Size | 2" (50mm), conductors up to 750MCM |
| Resistance | 400Ω, 4.0kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | 380926-NIST_S: CE, NIST 380926_S: CE |
| Dimensions | 10 × 2.9 × 1.5" (255 × 73 × 38mm) |
| Display | 5000-count segment LCD with backlighting |
| Power | 1 × 9V (1.5) battery |
| Safety Category | CAT IV-600V |
| Warranty | 2 years |
| Weight | 14oz (380g) |
