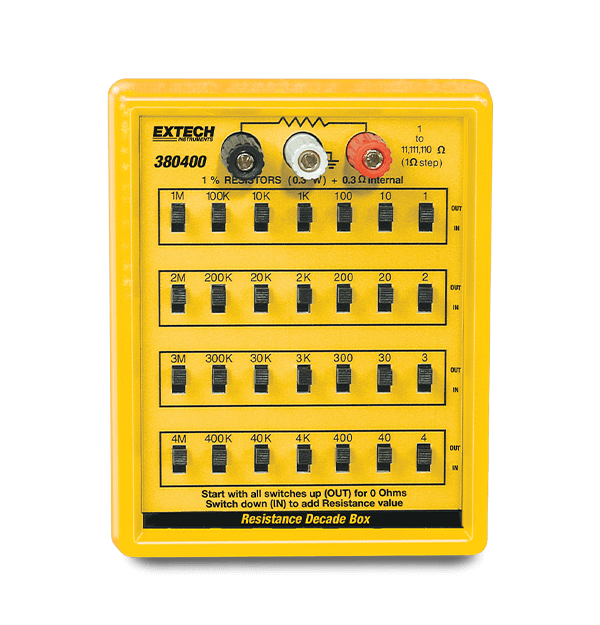

The Extech 380400 Resistance Decade Box is very popular for product design testing and calibration because it can be substituted into a circuit and function in the place of any component with a standard value easily. Alternatively, it can be used to identify the best value for circuit operation then read that value from the switches. Then, a resistor of the size indicated by the decade box switches can be put into the circuit.
Specifications
| General | |
|---|---|
| Internal Resistance | 0.3Ω |
| Resistance | 1 to 11,111,110Ω in 1Ω steps |
| Additional Details | |
|---|---|
| Connector[s] | Three (3) binding posts |
| Dimensions | 5.79 × 4.61 × 1.3" (147 × 117 × 33mm) |
| Power | 0.3W Resistors |
| Warranty | 2 years |
| Weight | 0.69lb (312g) |
Resources & Support
User Manual
Extech 380400 User Manual GB
Certification
Extech 380400 Declaration of Conformity
Datasheet
Extech 380400 380405 380500 Datasheet
User Manual
Extech 380400 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
