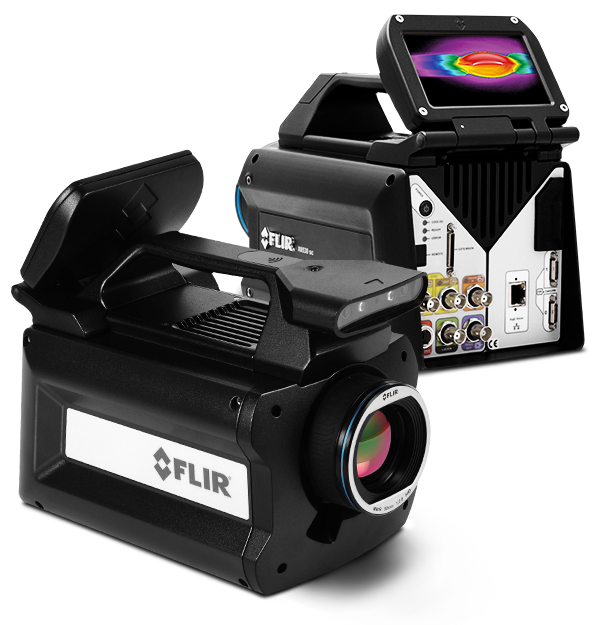

The FLIR X6570sc thermal imaging camera provides superior thermal measurement performance paired with the most advanced connectivity. Whether you need to analyze high-speed processes with microsecond precision or monitor fast temperature spikes, the X6570sc has the integration time and frame speed needed to collect the most accurate data. In addition, the camera’s state-of-the-art connectivity and intuitive user experience allow researchers to focus on their experiments instead of the camera controls.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 x 512 |
| Detector Pitch | 15 µm |
| Spectral Range | 7.7 - 9.3 µm |
| Detector Type | Mercury cadmium telluride (MCT) |
| Camera f_number | f/2.0 |
| Dynamic Range | 14-bit, 16-bit with DRX |
| NETD | <25 mK (20 mK typical) |
| Frame Rate | 234 Hz: 640 x 512 Up to 14,550 Hz: 160 x 1 |
| Integration Time | 10 µs to 20,000 µs |
| Standard Temperature Range | 5°C to 350°C (41°F to 662°F) |
| Filtering | 4-slot motorized filter wheel |
| Focus | Manual |
| Imaging & Optical | |
|---|---|
| Analog Palettes | Selectable 8-bit |
| Available Lenses | NA |
| Camera f_number | f/2.0 |
| Close_up Lenses_Microscopes | NA |
| Detector Pitch | 15 µm |
| Detector Type | Mercury cadmium telluride (MCT) |
| Digital Data Streaming | Simultaneous Gigabit Ethernet and Camera Link Base / Camera Link Medium |
| Display Overlay | Temperature measurement & scale |
| Dynamic Range | 14-bit, 16-bit with DRX |
| Filtering | 4-slot motorized filter wheel |
| Focus | Manual |
| Frame Rate | 234 Hz: 640 x 512 Up to 14,550 Hz: 160 x 1 |
| HD Video | DVI 1080p |
| Image Analysis | On-camera temperature analysis |
| Image Time Stamp | Internal IRIG-B decoder clock / TSPI accurate time stamp |
| Integration Time | 10 µs to 20,000 µs |
| IR Resolution | 640 x 512 |
| NETD | <25 mK (20 mK typical) |
| On Camera Display | Detachable touchscreen LCD display (800 x 480 pixel) |
| Operability | > 99% |
| Readout | Snapshot Digital (X8400sc/X6580sc) - Snapshot Analog (X6550sc/X6540sc/X6530sc) |
| Readout Modes | Asynchronous Integrate While Read; Asynchronous Integrate Then Read |
| Sensor Cooler Type | Closed cycle (rotary) Stirling cooler |
| Sensor Material | Mercury cadmium telluride (MCT) |
| Spectral Range | 7.7 - 9.3 µm |
| Subwindow Modes | 320 x 256 / 160 x 128, Arbitrary size, down to 160 x 1 |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1°C or ±1% of the reading |
| Automatic Gain Control | Manual, Linear, ROI |
| Calibration | Custom calibration on request |
| Standard Temperature Range | 5°C to 350°C (41°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Synchronization Modes | IRIG-B, Sync In/Out, Trigger In |
| Video Output | DVI 1080p |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 23 x 15 x 22 cm (9 x 6 x 8.6 in) with LCD, 23 x 15 x 18 cm (9 x 6 x 7 in) w/o LCD |
| Weight [without lens] | 4.80 kg (10.58 lbs) with LCD, 4.3 kg (9.47 lbs) without LCD |
| Power | |
|---|---|
| Power | 24 VDC |
| Environmental & Certifications | |
|---|---|
| Mounting | UNC 1/4"−20 + 3×M5 threads |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F ) |
| Shock and Vibration | Operational 6 ms, 25 g, IEC 68-2-29 Operational 2 g, IEC 68-2-26 |
