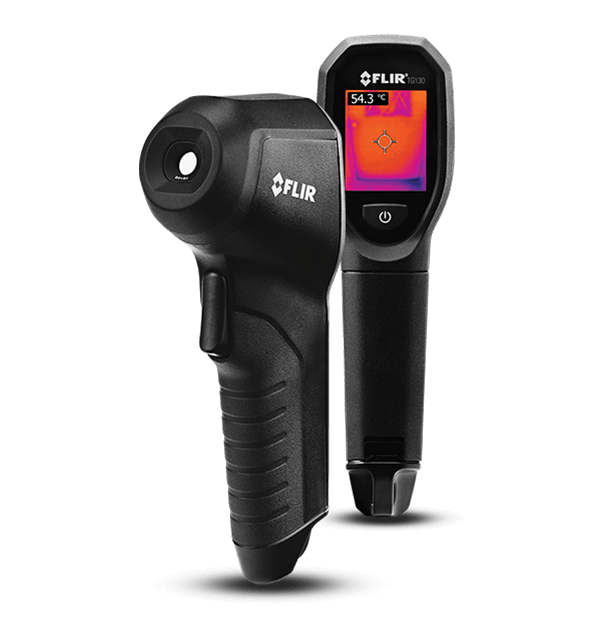

FLIR TG130
Entry Level Spot Thermal Camera
Save money on heating and cooling energy costs with the FLIR TG130 Spot Thermal Camera. Quickly find and troubleshoot temperature-related issues around the house and solve problems fast.
Specifications
| Highlighted | |
|---|---|
| Object Temperature Range | -10°C to 150°C (14°F to 302°F) |
| Field of view [FOV] | 55° × 43° |
| Emissivity Correction | No |
| Color palettes | Iron |
| Display | 1.8 in. TFT LCD |
| Imaging & Optical | |
|---|---|
| Color palettes | Iron |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view [FOV] | 55° × 43° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Minimum Focus Distance | 0.1 m (4 in) |
| Spectral Range | 8–14 µm |
| Measurement & Analysis | |
|---|---|
| Camera size [L x W x H] | 169 mm × 113 mm × 48 mm (6.6 in × 4.4 in × 1.9 in) |
| Camera weight incl battery | 0.21 kg (0.46 lb) |
| Center spot | Yes |
| Emissivity Correction | No |
| Object Temperature Range | -10°C to 150°C (14°F to 302°F) |
| Temperature Unit | Selectable by switch; °C or °F |
| User Interface | |
|---|---|
| Display | 1.8 in. TFT LCD |
| Power | |
|---|---|
| Battery operating time | 4 hours continuous scanning |
| Battery Type | 3 × AAA (LR03) |
| Power Management | Fixed; 5 min. |
| General | |
|---|---|
| Includes | Imaging IR spot thermal camera, Printed documentation, Lanyard, 3 × AAA (LR03) batteries |
| Environmental & Certifications | |
|---|---|
| Certifications | CE/PSE/EN/UL/CSA 60950-1 |
| Drop test | Designed for 2 m (6.6 ft) |
| Encapsulation | IP 40 (IEC 60529) |
| Operating Temperature Range | 10°C to 45°C (14°F to 113°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
