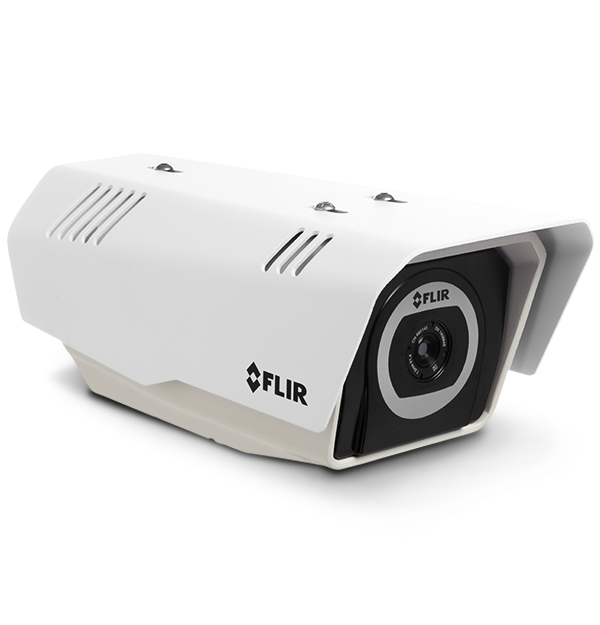

FLIR FC-Series R (Automation)
Fixed Network Thermal Cameras
The FC-Series R features on-board, non-contact temperature measurement capabilities for fire detection, safety, and thermal monitoring of substations, waste disposal, and valuable equipment. FC-Series R combines state-of-the-art image detail and on-board video analytics to provide reliable detection. Flexible alarming options include email, web and mobile apps, edge image storage, digital outputs, or VMS event notifications.
Specifications
| Highlighted | |
|---|---|
| Network APIs | Nexus SDK for comprehensive system control and integration, Nexus CGI for http command interfaces ONVIF Profile S |
| IP Rating | IP66 & IP67 |
| Dimensions [L x W x H] | 233.68 × 116.84 × 104.14 mm (9.2 × 4.6 × 4.1 in) w/o sun shield; 274.32 × 137.16 × 111.76 mm (10.8 × 5.4 × 4.4 in) w/ sun shield |
| Effective Resolution | 307,200 |
| Field of View | 45° × 37° (FC-645R; 13 mm) |
| Measurement Accuracy | +/-5°C or 5% of reading |
| Communication & Data Storage | |
|---|---|
| Composite Video NTSC or PAL | Yes; Hybrid system with IP & Analog video |
| Ethernet | Yes |
| External Analytics Compatible | Yes |
| Network APIs | Nexus SDK for comprehensive system control and integration, Nexus CGI for http command interfaces ONVIF Profile S |
| Video Over Ethernet | Two independent channels of H.264, MPEG-4 & M-JPEG (see website for full details) |
| Imaging & Optical | |
|---|---|
| Array Format [NTSC] | 640 × 480 |
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
| Effective Resolution | 307,200 |
| Field of View | 45° × 37° (FC-645R; 13 mm) |
| Focus Range | Athermalized, focus-free |
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC) Thermal and Temporal Triggers |
| Pixel Pitch | 17 µm |
| Screen EST Mode | No |
| Spectral Range | 7.5 µm to 13.5 µm |
| Streaming Resolutions | D1: 720 × 576, 4CIF: 704 × 576, Native: 640 × 512, Q-Native: 320 × 256, CIF: 352 × 288, QCIF: 176 × 144 |
| Thermal AGC Modes | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting |
| Thermal AGC Region of Interest | Default, Presets and User definable to insure optimal image quality on subjects of interest |
| Zoom | Continuous E-zoom, up to 4X |
| Measurement & Analysis | |
|---|---|
| Measurement Accuracy | +/-5°C or 5% of reading |
| Measurement Range | -10°C to 110°C |
| General | |
|---|---|
| Dimensions [L x W x H] | 233.68 × 116.84 × 104.14 mm (9.2 × 4.6 × 4.1 in) w/o sun shield; 274.32 × 137.16 × 111.76 mm (10.8 × 5.4 × 4.4 in) w/ sun shield |
| Weight | 1.8 kg (4.0 lb) w/o sun shield, 2.2 kg (4.8 lb) w/sun shield |
| Environmental & Certifications | |
|---|---|
| Humidity | 0-95% relative |
| IP Rating | IP66 & IP67 |
| Operating Temperature Range | -50°C to 70°C (continuous operation) -40°C to 70°C (cold start) |
| Shock | MIL-STD-810F "Transportation" |
| Storage Temperature Range | -55°C to 85°C |
| Vibe | IEC 60068-2-27 |
| Power | |
|---|---|
| Input Voltage | 11-44 VDC (no lens heaters), 16-44 VDC (w/lens heaters), 14-32 VAC (no lens heaters), 16-32 VAC (w/lens heaters), PoE (IEEE 802.3af-2003), PoE+ (IEEE 802.3at-2009) |
| Power Consumption | 24 VDC 5 W nominal, 21 W peak (w/heaters), 24 VAC, 8 VA nominal, 29 VA peak (w/heaters), Approvals, FCC Part15, Subpart B, Class B, CE: EN 55022 Class B |
| Surge Immunity on AC Power Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV on AC aux power lines |
| Surge Immunity on Signal Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV |
