FLIR X6800sc MWIR
High Speed, Performance MWIR InSb Camera
Product Variations

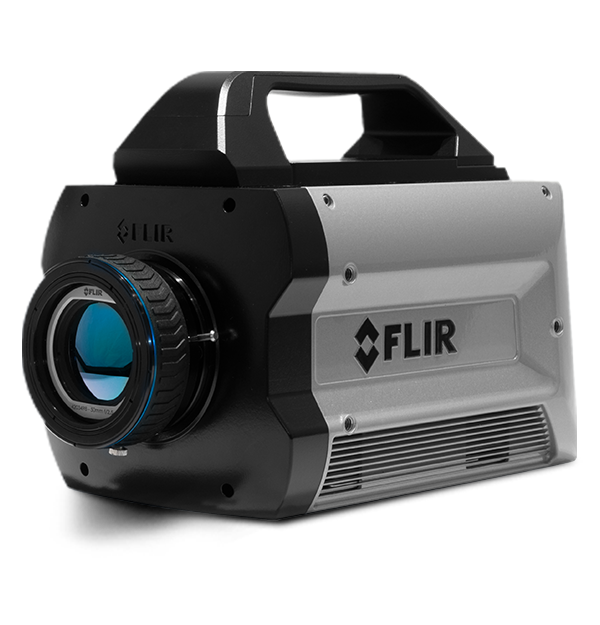

The FLIR X6800sc is a fast, highly sensitive MWIR camera designed for scientists, researchers, and engineers. With advanced triggering and on-camera RAM/SSD recording, this camera offers the functionality to stop motion on high- speed events both in the lab and at the test range. The X6800sc has a cooled FLIR indium antimonide (InSb) detector and captures full 640 × 512 images at 520 frames per second, or up to 23,077 Hz with windowing.
Advanced triggering and on-camera RAM/SSD recording
Save data to on-camera RAM or to the removable solid-state drive (SSD). Stream high-speed, 14-bit data simultaneously.
Incorporates an easy access, four-position motorized filter wheel that permits filter exchange in any environment, and features automatic filter recognition.
Maximum versatility for synchronizing and triggering to external events or instrumentation. Works seamlessly with FLIR ResearchIR Max or third-party software.
Specifications
| Highlighted | |
|---|---|
| Resolution | 640 × 512 |
| Detector Pitch | 25 µm |
| Spectral Range | X6800sc, X6802sc: 1.5 – 5.0 µm X6801sc, X6803sc: 3.0 – 5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f_number | X6800sc, X6801sc: f/2.5 X6802sc, X6803sc: f/4.1 |
| Dynamic Range | 14-bit |
| NETD | <20 mK (typical) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 520 Hz |
| Integration Time | 270 ns to ~Full Frame |
| Standard Temperature Range | -20°C to 300°C (-4°F to 572°F) |
| Standard Temperature Range [with band matched optics] | X6801sc, X6803sc: -20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes X6802sc: -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range [with band matched optics] | 45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3) |
| Filtering | 4-position motorized filter wheel, standard 1-inch filters |
| Focus | Manual |
| Imaging & Optical | |
|---|---|
| Available Lenses | X6800sc, X6802sc: 25 mm, 50 mm, 100 mm X6801sc, X6803sc: 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Camera f_number | X6800sc, X6801sc: f/2.5 X6802sc, X6803sc: f/4.1 |
| Close_up Lenses_Microscopes | X6800sc, X6802sc: No microscopes available X6801sc, X6803sc: 1x, 3x |
| Detector Pitch | 25 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Digital Zoom | 1x, 4x, 4:3 |
| Dynamic Range | 14-bit |
| Filtering | 4-position motorized filter wheel, standard 1-inch filters |
| Focus | Manual |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 520 Hz |
| Image Time Stamp | Internal precision timestamp. IRIG-B AM decoder, TSPI accurate |
| Integration Time | 270 ns to ~Full Frame |
| Lens Interface | FLIR FPO (4-tab bayonet) |
| NETD | <20 mK (typical) |
| On Camera Image Storage | RAM (volatile): 16 GB, up to 26,000 frames full frame
SSD (non-volatile): includes 512GB compatible with >4 TB |
| Operability | ≥99.8% (≥99.95% typical) |
| Overlay | Customizable |
| Palette | Selectable 8-bit |
| Pixel Clock | 355 MHz |
| Radiometric Data Streaming | Simultaneous Gigabit Ethernet (GigE Vision), Camera Link |
| Readout Modes | Asynchronous integrate while read, asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 640 × 512 |
| Sensor Cooling | Closed cycle rotary |
| Spectral Range | X6800sc, X6802sc: 1.5 – 5.0 µm X6801sc, X6803sc: 3.0 – 5.0 µm |
| Standard Video | HDMI |
| Subwindow Modes | Flexible windowing down to 32 × 4 (steps of 32 columns, 4 rows) |
| Video Modes | X6800sc, X6803sc: HD: 720p/50/59.9 Hz, 1080p/25/29.9 Hz X6801sc, X6802sc: HD: 720p/50/59.9 Hz, 1080p/25/29.9 Hz, SD: NTSC, PAL |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C (≤212°F), ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical); >100°C ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, ROI, DDE |
| Optional Temperature Range [with band matched optics] | 45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3) |
| Standard Temperature Range | -20°C to 300°C (-4°F to 572°F) |
| Standard Temperature Range [with band matched optics] | X6801sc, X6803sc: -20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes X6802sc: -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GigE, USB, RS-232, Camera Link (Genicam supported over GigE) |
| Synchronization Modes | X6800sc: Sync-in, Sync-out X6801sc, X6802sc, X6803sc: Sync In, Sync Out, Trigger In |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 249 × 157 × 147 mm (9.8 × 6.2 × 5.8 in) |
| Weight [without lens and with handle] | 6.35 kg (14 lbs) |
| Weight [without lens] | 6.35 kg (14 lbs) |
| Power | |
|---|---|
| Power | 24 VDC (<50 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2 × ¼ in. -20, 1 × 3/8 in. -16, 4 × #10 -24, Side: 3x ¼ in. -20 (each side) |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
Accessories
- FLIR X-Camera Filter Wheel Removal Wrench (C1004.M202)
- 3x Microscope Protective Window - MWIR ONLY (4219929)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
Resources & Support
Datasheet
x6800_MWIR_datasheet
Brochure
Thermal Research And Science Brochure
Warranty
FLIR Solutions Cooled Camera Limited Warranty
User Manual
X Series Science Camera User Manual
