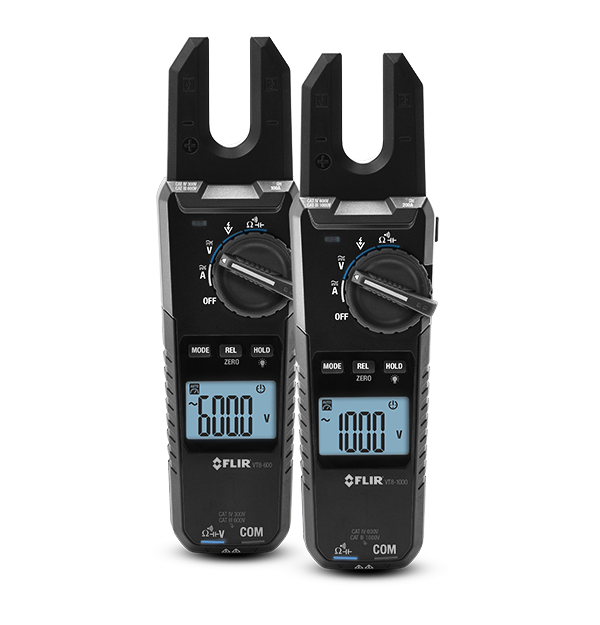

FLIR VT8-Series

Voltage, Continuity, and Current Tester

104,00 € ex. VAT

124,80 € inc. approx. VAT (20 %)

Product Variations

BUY NOW

The FLIR VT8-Series are high-quality voltage, continuity, and current testers. They feature an optimized, open-jaw design that can fit into tight spaces and reliably measure large-diameter cables. The VT8-600 carries a CAT III-600 V/CAT IV-300 V safety rating and a 100 A/600 V measuring range, while the VT8-1000 carries a CAT III-1000 V/CAT IV-600 V safety rating and a 200 A/1000 V measuring range. Extensive measurement features make the VT8-Series versatile tools – just one meter can get the job done.

Your go-to troubleshooting electrical tester

Made with the quality and reliability you have come to expect from FLIR test and measurement tools

Equipped with the capabilities you need including True RMS, AC/DC voltage and current, continuity, resistance, and capacitance

Take measurements in tight spaces with the optimized jaw design, and measure large-diameter cables with the wide jaw opening

Specifications

Highlighted
Non_Contact Voltage Detector [NCV]	>100 Vrms; <10 mm distance (LED/buzzer alerts)
Drop test	2 m (6.6 ft)
Warranty	Limited 3-year

Measurement & Analysis
AC_DC Current Accuracy	VT8-1000: ±2.5% (50 to 60Hz) VT8-600: ±2.5% (50 to 60 Hz)
AC_DC Current Range	VT8-1000: 200 A VT8-600: 100 A
AC_DC Current Resolution	0.1 A
AC_DC Voltage Resolution	0.1 V
AC_DC Volts Accuracy	VT8-1000: ±1.5%, ±1.0% (56 to 66 Hz) VT8-600: ±1.5%, ±1.0% (45 to 66Hz)
AC_DC Volts Range	VT8-1000: 1000 V VT8-600: 600 V
Additional Measurement Functions	DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold
Auto Range	Yes
Capacitance	600 µF ±4.0%, 6000 µF ±10.0%
Continuity check threshold	10 Ω to 100 Ω
Display Rate	Approximately 3 times per second
Over_Range Indication	"OL" or "-OL" displayed
Polarity	Automatic display of positive and negative polarity
Resistance	60.00 MΩ ± (1.5%)
True RMS	Yes

User Interface
Display	6000-count backlit multi-function LCD

Environmental & Certifications
Agency Approvals	C-UL-US, CE, RCM
Drop test	2 m (6.6 ft)
Operating Temperature	-10 to 50°C (14 to 122°F)
Relative Humidity	95% max; 5 to 30°C (41 to 86°F) 75% max; 30 to 40°C (86 to 104°F) 45% max; 40 to 50°C (104 to 122°F)
Storage Temperature	–30 to 60°C (-22 to 140°F), batteries not installed
Warranty	Limited 3-year

General
Dimensions [W x H x D]	210 × 53 × 35 mm (8.27 × 2.1 × 0.67 in)
Jaw Opening	15.5 mm (0.61 in)
Worklights	White LED

Power
Auto Power Off	After 15 minutes
Low Battery Indication	Battery symbol is displayed when batteries need changing
Non_Contact Voltage Detector [NCV]	>100 Vrms; <10 mm distance (LED/buzzer alerts)
Power Source	2 x AA alkaline batteries
