USS Enterprise-Class

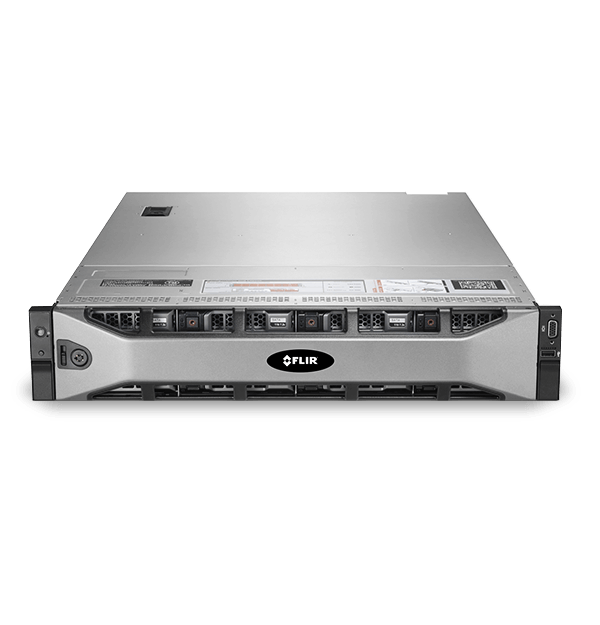

Enterprise-Class Server
The FLIR Universal Systems Solutions Enterprise is an ideal multi-purpose rack server with up to 96TB of storage, redundancy, and value in a compact chassis that addresses the requirements of IT environments. The unit is loaded with system management capabilities, best-in-class processing, and the ability expand storage in the future.
Specifications
| Compliance & Certifications | |
|---|---|
| Certifications | Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC |
| General | |
|---|---|
| Chipset | Intel C610 |
| Dimensions | 87.3 x 440 x 684 (mm) |
| Form Factor | 2U rack |
| Memory | 16 GB RDIMM RAM (2X8GB) |
| Operating System | Microsoft Windows Server 2012 R2 Embedded) |
| Power Supply | Dual, Hot-plug, Redundant Power Supply, 495W, 100~240VAC 50/60Hz (auto) |
| Processor | Enterprise Six-core Intel® Xeon® processor E5-2600 product family |
| Rack Support | ReadyRails™ II sliding rails |
| RAID Controller | Hardware RAID controller with Flash Backed Cache |
| System Management | iDRAC8 Express (Enterprise License Upgrade Option) |
| Warranty | 3-year ProSupport and Next Business Day On-site Service (upgrades available) |
| Weight | Max: 36.5 Kg (80.47 lb) |
| System Integration | |
|---|---|
| Communication | Embedded Quad Port 1Gb NIC |
| I_O Slots | 6 PCIe slots |
| Processor Sockets | 2 |
| USB Peripherals | 2 - USB 3.0 compliant |
| Video & Recording | |
|---|---|
| Hard Drive Bay | 16+2 hard drive chassis |
| Hard Drive Storage | Enterprise class, Hot-swap HDDS Max Internal Storage: 96TB |
Resources & Support
Datasheet
USS Enterprise Class Server Datasheet
Warranty
FLIR USS Products - 5-Year Warranty
User Manual
FLIR Cyber Hardening Guide
Selection Guide
FLIR Security Product Matrix Selection Guide
Application Story
City Deploys Flir Video System for Safety
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
