TrafiBot3

Automatic Incident Detection & Traffic Data Collection

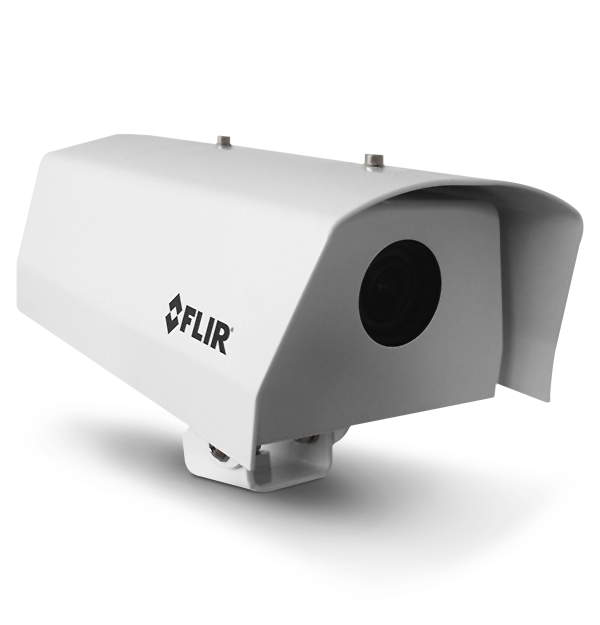

The FLIR TrafiBot3 integrated camera combines Full HD visual imaging technology with advanced video analytics. FLIR’s traffic video analytics have proven their effectiveness worldwide along highways, bridges and inside tunnels. The FLIR TrafiBot3 has advanced processing that generates traffic data and incident detection information and thus supports traffic operators with alerts on stopped vehicles, wrong-way drivers, pedestrians, lost cargo, smoke, and traffic flow data.

The FLIR TrafiBot3 brings unrivaled image quality in full HD resolution with superior low light performance and wide dynamic range.
Provides critical traffic anomaly detection and traffic data collection.
Extremely compact, rugged and smart design made for quick and easy installation in harsh environments.

Specifications

Communications
Interfaces 100/1000 Mbps, auto negotiating
Supported Protocols IPv4, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, UPnP, IGMP, SNMP, QoS, ONVIF, TLS1.2, IEEE802.1x
Electrical
Input Voltage 24 V AC/DC PoE IEEE802.3af or IEEE802.3at type I
Power Consumption 7 W nominal; 12 W max
Environmental
Housing material Stainless steel 316L
Humidity 5% to 100%
Operating Temperature Range Continuous: -30°C to +55°C (-22°F to 131°F) (sheltered, air temp) -34°C to +74°C (-29°F to 165°F) per Nema TS-2
Imaging & Optical
Effective Pixels 1920 × 1080, 2.1 MP
Electronic Shutter Speed 1/25 to 1/30000 s
Focal Length 5.1 mm to 51 mm (0.2 in to 2 in)
Horizontal Field of View [HFOV] 57°(W) to 6.2°(N)
Image Sensor 1/3” progressive scan CMOS
Image Stabilization Yes - digital
Optical Zoom 10× motorized
Shutter WDR 120 dB
Mechanical
Mounting Swivel, ceiling mount, and wall/pole mount options

Resources & Support

Datasheet

FLIR Trafibot3 Datasheet GB

Download

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
