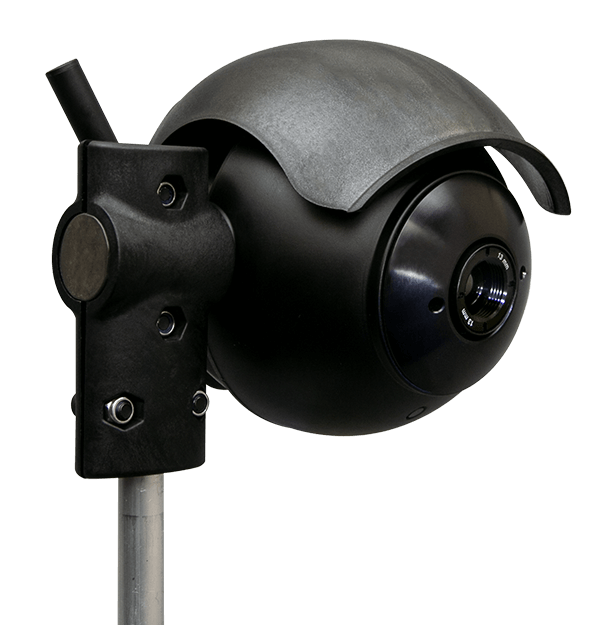

ThermiCam AI
AI-Powered Thermal Traffic Sensor
Designed to reliably detect and classify road users, ThermiCam AI is an intelligent thermal imaging sensor for traffic monitoring in complex urban environments. Featuring AI algorithms built on 25+ years of traffic detection and best-in-class thermal imaging, ThermiCam AI delivers continuous vision and data collection for safer, more efficient cities. Capable of tracking multiple objects in any lighting condition, the advanced edge-based AI technology effectively controls intersections, helps protect vulnerable road users, and gathers detailed traffic data for better city planning decisions.
Specifications
| System Overview | |
|---|---|
| Detection Zones | 24 virtual loops for presence detection
8 traffic data zones for classification and counting 8 Bicycle & Pedestrian detection zones |
| Functionality | Vehicle, Bicycle and Pedestrian Presence Detection
Traffic Data Collection (Integrated Data) Queue Length Monitoring Premium traffic Data Collection (Individual Data) - optional license |
| Communications | |
|---|---|
| Compression | H.264, MPJEG, H.265 |
| Configuration | local/remote web page setup via Wi-Fi, PoE or BPL |
| Electrical | |
|---|---|
| BPL | 80 Mbps Broadband over Powerline communication via TI BPL3 interface |
| Detection Distance | ThermiCam AI - 645: 10–100 m ThermiCam AI - 632: 15–150 m ThermiCam AI - 690: 0–25 m, 5–60 m |
| FCC | FCC part 15 class A |
| Input Power | 24-42 VAC / 24-48 VDC |
| Output Contacts | 1 N/O and 1 N/C dry contact direct
16 N/C dry contacts via TI BPL3 interface |
| PoE | PoE mode A for configuration, video streaming and data communication |
| Power Consumption | Avg 10.5 W / Peak 15 W |
| Environmental | |
|---|---|
| EU Directives | EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU |
| IP Rating | IP67 |
| Shock and Vibration | NEMA TS2 specs |
| Temperature Range | -34°C to 74°C |
| Imaging & Optical | |
|---|---|
| Field of View | ThermiCam AI - 645: 45°H × 37°V ThermiCam AI - 632: 32°H × 26°V ThermiCam AI - 690: 90°H × 69°V |
| Frame Rate | 30 fps |
| Resolution | ThermiCam AI - 632, ThermiCam AI - 690: VGA (640 × 480) ThermiCam AI - 645: VGA (640 × 420) |
| Streaming Video | RTSP |
| Type | Focal Plane Array (FPA)
Uncooled VOx microbolometer Long wave Infrared (7 – 14 µm) |
| Mechanical | |
|---|---|
| Dimensions [incl mounting bracket] | Vertically mounted: 45 cm × 16 cm × 12 cm
Horizontally mounted: 41 cm × 18 cm × 12 cm |
| Material | All weatherproof UV resistant; aluminum housing with integrated polycarbonate sunshield |
