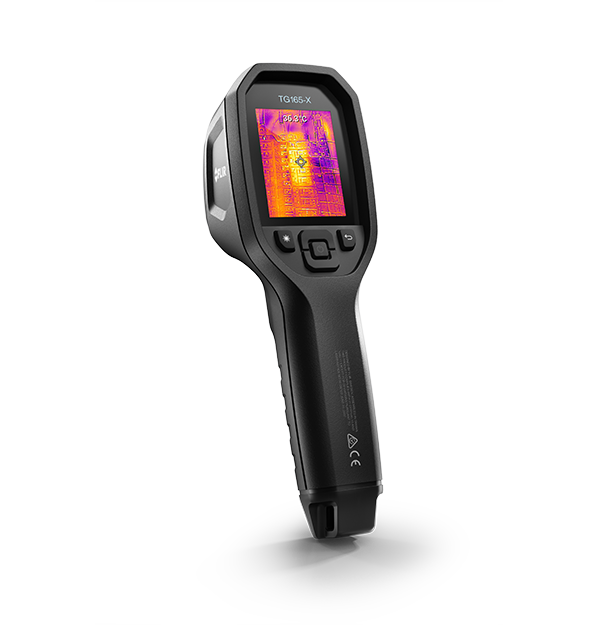

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 80 × 60 pixels |
| Thermal Sensitivity_NETD | <70 mK |
| Accuracy | 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)" |
| Field of view [FOV] | 71° × 56°, adapts to the IR lens |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), visual |
| Storage Media | eMMC 4 GB |
| Imaging & Optical | |
|---|---|
| Camera software update | Using USB cable or SD card |
| Color palettes | Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava |
| Detector Pitch | 17 µm |
| Digital image enhancement | No |
| Display resolution | 320 × 240 pixels |
| Field of View | |
| Field of view [FOV] | 71° × 56°, adapts to the IR lens |
| Focal Plane Array [FPA]_Spectral range | Uncooled microbolometer/7.5–14 µm |
| Focus | Fixed |
| Gallery | Yes |
| Image Frequency | 8.7 Hz |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), visual |
| IR Resolution | 80 × 60 pixels |
| Laser | Class 1 |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft.) |
| Resolution | 2 MP (1600 × 1200 pixels) |
| Thermal Sensitivity_NETD | <70 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)" |
| Distance to Spot Ratio [D:S] | 24:1 |
| Emissivity Correction | Yes: 4 pre-set levels with custom adjustment of 0.1–0.99 |
| Object Temperature Range | -25°C to 300°C (-13°F to 572°F) |
| Set_up Commands | Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images |
| Spot Meter | Center spot on/off |
| User Interface | |
|---|---|
| Display Technology | TFT |
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| Communication & Data Storage | |
|---|---|
| Image File Format | JPEG with spot temp in meta tag |
| Image Storage Capacity | 50.000 images |
| Interfaces | USB 2.0 |
| Storage Media | eMMC 4 GB |
| USB | USB Type-C: data transfer/power |
| USB_Standard | USB Type-C High Speed; data transfer/power |
| Power | |
|---|---|
| Battery charge life | 30 days minimum |
| Battery operating time | 5 hours of scanning (LCM medium brightness); 4.5 hours with laser on (LCM medium brightness) |
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.7 V |
| Charging system | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Power Management | Adjustable: off, 5 minutes, 15 minutes, 30 minutes |
| Environmental & Certifications | |
|---|---|
| Drop | Designed for 2 m (6.56 ft) |
| EMC | EN 61000-6-3/EN 61000-6-2/FCC 47 CFR Part 15 Class B |
| Encapsulation | IP54 (IEC60529) |
| Humidity [operating and storage] | 0–90% relative humidity (RH) (0°C to 37°C (32°F to 98.6°F)); 0–65% RH (37°C to 45°C (98.6°F to 113°F)); 0–45% RH (45°C to 55°C (113°F to 131°F )) |
| Magnetic fields | EN 61000-4-8 class 3 |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Radio Spectrum | ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2/EN 301 489-1:2011/EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) |
| Tripod Mounting | UNC ¼″-20 |
| Vibration | 2 g (IEC 60068-2-6) |
| General | |
|---|---|
| Flashlight | LED on/off |
| Form Factor | Pistol |
| Laser Pointer | Indicating the size of the measurement area |
| Light Output | 100 lumens |
| Size [L × W × H] | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Weight [battery included] | 0.394 kg (13.9 oz) |
