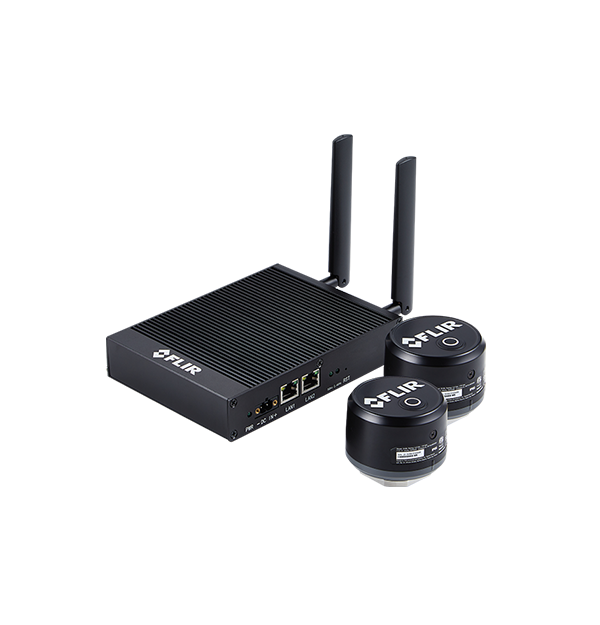

FLIR SV89-KIT
Vibration Monitoring Solution Kit
1 449,00 € ex. VAT
1 738,80 € inc. approx. VAT (20 %)
The FLIR SV89™ Vibration Monitoring Kit helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems. With its Multi-communication protocols, rugged, IP66 rating and wireless capability, the SV88 Vibration Monitoring Solution Kit allows you to make critical data-driven decisions that alert you to potential issues and extend the life of your valuable equipment.
Get comprehensive insights to identify patterns, trends, potential failure modes, and the severity of detected issues in your equipment - Averting costly downtime
Wireless capability enhances installation flexibility, enabling easy deployment in a range of industrial environments The SV88 seamlessly integrates with advanced analysis tools through communication protocols such as Modbus, MQTT, and OPC UA.
Web based GUI for accessing vibration data, deploying sensors, and managing integrations, all performed on Gateway, ensuring you have complete control over your vibration solution.
Specifications
| Measurement & Analysis | |
|---|---|
| Capture Rate | Configurable: 1 min (minimum) - 1 day (maximum) |
| Frequency Range | 10 Hz to 10 kHz |
| Sensitivity Range | ±50 g |
| Temperature Range | Display measurement trend of contact temperature -20°C to 80°C (-4°F to 176°F) |
| Vibration Analysis Data | Grms, Vrms, (ISO10816) Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT |
| Communication & Data Storage | |
|---|---|
| Communication Protocol | Sensor: TCP Socket;
Gateway: MQTT, Modbus, OPC UA |
| Memory | Sensor: 1 MB Flash;
Gateway: DDR3L 512 MB |
| Output Data | Sensor: 10 KHz, Z: 12,800 raw data;
Gateway: Vibration analysis data: Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT |
| Range [During A Session] | Up to 50 m (160 ft), line of sight |
| Wi_Fi Type | IEEE 802.11n |
| Power | |
|---|---|
| AC Input | TA87 universal power adaptor: 100 V to 240 V AC, 50/60 Hz (optional) |
| Battery Life | LS17500 3.6 V 3600 mAh Li battery (replaceable) |
| Battery Type | -20° to 80°C (-4°F to 149°F) |
| LED Indicators | Sensor: Low battery LED;
Gateway: WAN, LAN, 2.4 GHz, 5 GHz dual band dual concurrent |
| PoE | 802.3 at standard PoE (PD) @ WAN port |
| Power Input | 12 VDC |
| General | |
|---|---|
| Operating System | Built-in webserver (Linux) |
| Size [L x W x H] | Sensor: 29 × 25 × 14 mm (1.14 × .98 × .55 in);
Gateway: 57.3 × 39.3 × 46.1 mm (2.25 × 1.55 × 1.81 in) |
| Weight | Sensor: 187 g (6.6 oz);
Gateway: 645 g (22.75 oz) |
| Environmental & Certifications | |
|---|---|
| Altitude | 2000 m (6,562 ft) |
| Certifications | ETL/FCC/IC/CE/UKCA/RCM |
| Drop test | 1 m (3 ft) |
| Humidity [operating and storage] | 10% - 95% relative humidity, non-condensing |
| IP Rating | Sensor: IP66;
Gateway: IP40 |
| Operating Temperature Range | -20° to 80°C (-4°F to 149°F) |
| Relative Humidity | 10% - 95% relative humidity, non-condensing |
| Storage Temperature Range | -20° to 80°C (-4°F to 149°F) |
| Warranty | 3 years |
