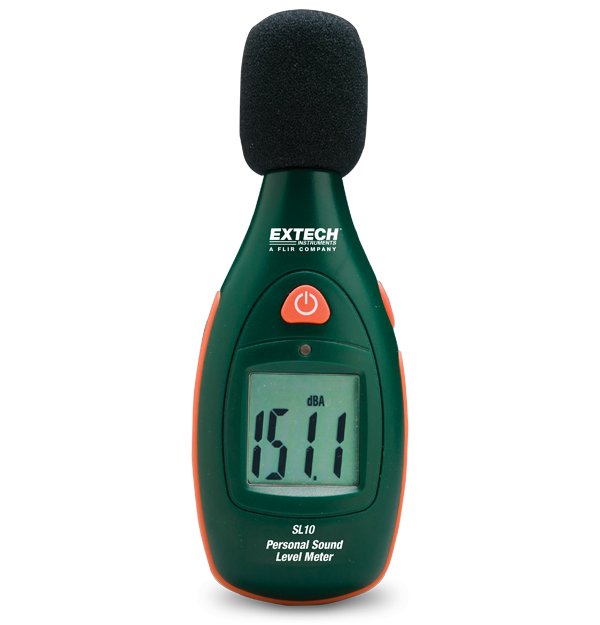

Extech SL10
Pocket Series Sound Meter
The Extech SL10 Pocket Series Sound Meter is easy to use and easy to stow. Keep one handy for whenever you need to take a quick sound level measurement. It measures sound level from 40 dB to 130 dB with a frequency weighting for human hearing and fast response time of 125 ms. Complete with 9 V battery.
Specifications
| General | |
|---|---|
| Frequency Bandwidth | 31.5Hz to 8KHz |
| Microphone | Condenser, 0.5" |
| Response Time | 125 milliseconds |
| Sound Range [dB] | 40 to 130dB |
| Sound Range [dB] Basic Accuracy | ±3.5dB (under 94dB reference conditions) |
| Sound Range [dB] Max Resolution | 0.1dB |
| Weighting | A |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.3 × 2.2 × 1.3" (210 × 55 × 32mm) |
| Display | 4-digit (4000 count) backlit LCD |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 4.8oz (135g) |
Resources & Support
Certification
Extech SL10 Declaration of Conformity
User Manual
Extech SL10 User Manual
Datasheet
Extech AN10 LT10 RH10 SL10 Datasheet
