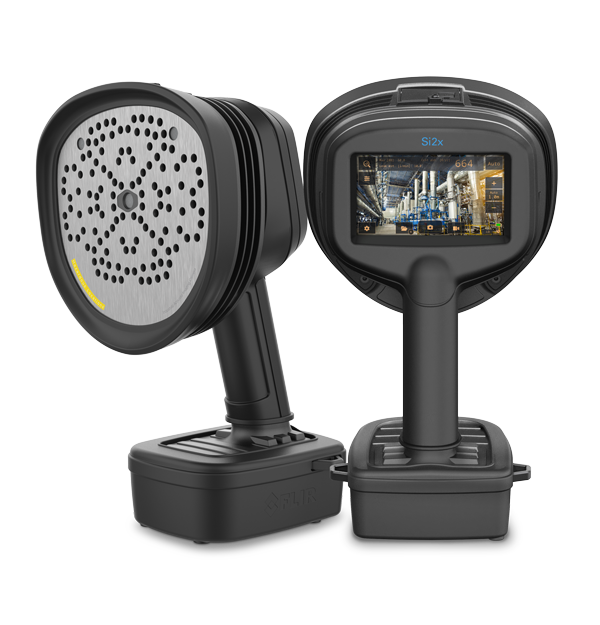

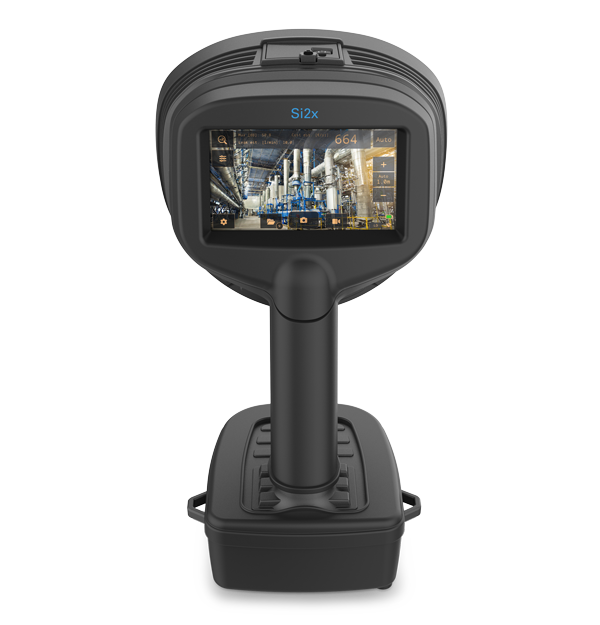

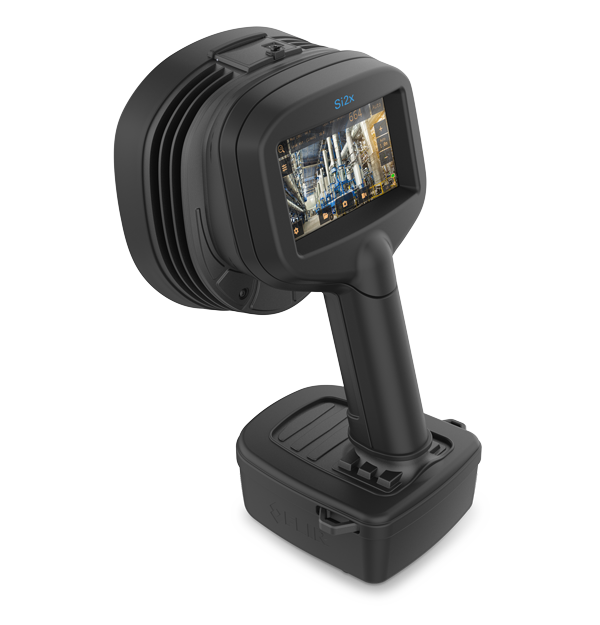

FLIR Si2x-LD™

Hazardous Location Acoustic Imaging Camera for Pressurized Leak Detection and Mechanical Fault Detection

The Si2x-LD Acoustic Imaging Camera is specifically designed for use in hazardous gas and explosive dust environments, to easily reduce leaks of toxic or flammable gases to improve safety, or cut expenses associated with compressed air or gas leaks in your facilities. With its advanced analysis tools, the Si2x-LD provides a robust solution for lowering costs associated with mechanical bearing issues. Engineered for hazardous operations, it offers best-in-class performance, decision support, and fleet management, along with enterprise data integration for optimal efficiency and safety.

For those requiring partial discharge detection, you can opt for the Si2x-Pro for PD, leak. and mechanical fault detection.

Whether it’s a small hiss or a hard-to-find leak, this camera can identify and quantify compressed air and specific gas leaks from up to 200 m (656 ft) away, making it indispensable for ensuring operational efficiency and safety.

Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing and other mechanical defects before they overheat or cause equipment failure.

Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.

Specifications

Highlighted
Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Distance	From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate	0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)

Imaging & Optical
Camera software update	Automatic Over The Air (OTA) wireless update or via USB connection
Field of view [FOV]	75° diagonal
Video Frame Rate	Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps
Video Image Resolution	1280 × 720
Zoom	8x Digital zoom

Measurement & Analysis
Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Bandwidth	2 kHz to 130 kHz
Detection Threshold	20 kHz: -8 dB SPL 35 kHz: 4 dB SPL 50 kHz: 13 dB SPL 80 kHz: 42 dB SPL 100 kHz: 58 dB SPL
Detects Following Gases	Compressed Air, Nitrogen, Ammonia, Hydrogen, Carbon Dioxide, Methane, Helium, and Argon
Distance	From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate	0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Mechanical Analysis	Mechanical Sound Indicator (MSI) Confirmation, Sound Pressure Level (dB), Crest factor, Kurtosis factor

User Interface
Display	Size: 5 in. 1280 × 720 Resistive touch screen, TFT LCD, MIPI DSI

Power
Battery	Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh Max output: 16.8 V DC, 5 A Charge time: approx. 2 h
Battery Charger	Input: 19-26 V DC, 2.8 A Max output: 17.4 V DC, 4.8 A
Battery weight	~ 0.25 kg
Nominal Input Voltage	Nominal input voltage: 12 V DC Max input: 17 V DC , 3.3 A (limited)

Environmental & Certifications
Explosive [hazardous] Environment	Ex II 3 G Ex ic IIC T4 Gc Ex II 3 D Ex ic IIIC T135°C Dc Tamb -10°C to 40°C
Operating And Storage Humidity	0-90% recommended
Operating Temperature Range	–10°C to 50°C (14°F to 122°F)
Protection Class	IP54
Storage Temperature Range	–20°C to 70°C ( –4°F to 158°F)
Warranty	support.flir.com/Si2

General
Size	188 × 313 × 176 mm (7.5 × 12.5 × 7 in)
Weight	~ 2.1 kg (4.5 lbs)
Worklights	LEDs, 2 modes: On/Off

Accessories

Other

T912406 Acoustic Camera Tester with Table Tripod for Si-Series

Straps Holsters

Neckstrap (T131758ACC)
