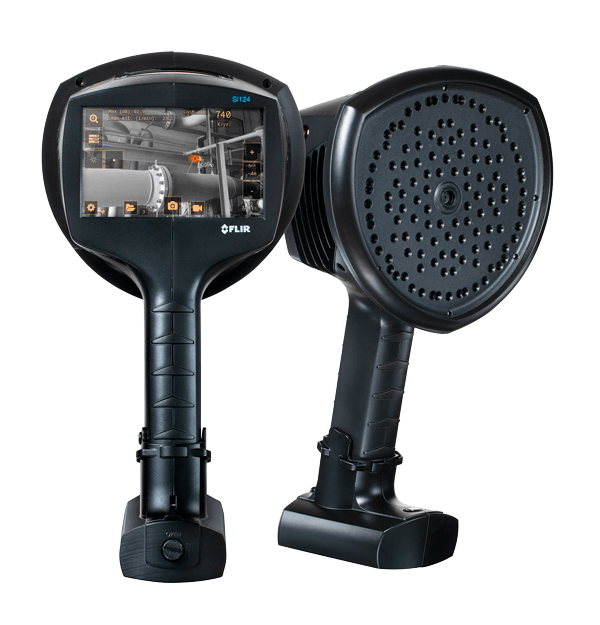

FLIR Si124-LD Plus

Industrial Acoustic Imaging Camera for Compressed Air Leak Detection

8 799,00 € ex. VAT

10 558,80 € inc. approx. VAT (20 %)

BUY NOW

The FLIR Si124-LD Plus is an easy-to-use, stand-alone system for locating and quantifying pressurized leaks in compressed air systems. This lightweight, one-handed solution is designed to help maintenance, manufacturing, and engineering professionals identify air leaks up to 10 times faster than with traditional methods. Built with 124 microphones, the Si124-LD Plus produces a precise acoustic image that visually displays ultrasonic information, even in loud, industrial environments. The acoustic image is overlaid in real time on a digital camera picture, allowing you to accurately pinpoint the source of the sound. The Si124-LD Plus features a plugin that enables you to import acoustic images to FLIR Thermal Studio suite for offline editing, analysis, and advanced report creation. Field analysis and reporting can also be done using the FLIR Acoustic Camera Viewer cloud service. Through a regular maintenance routine, the FLIR Si124-LD Plus can help facilities save money on utility bills and delay the expense of installing new compressors.

Available in additional models which include: the Si124-PD for electric utility applications, or the Si124 for both electric utility and leak-detection applications. View the models in the related products section below.

Accurately detect and measure small compressed air and gas leaks (from 0.016 l/min to 0.004 l/min) up to 10 times faster with sound imaging, Auto Distance, and Auto Filtering features

Minimize excess utility costs, equipment failures, and downtime by ensuring proper air pressure to pneumatic equipment and quantifying leak size to understand how much energy was lost

Quantify leak severity in real time with this lightweight, smart tool that you can operate with one hand and minimal training

Specifications

Highlighted
Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Distance	From 0.3 m (1 ft) up to 130 m (430 ft)
Leak Rate	In typical industrial environment: •>0.011 l/min @ 3 bar from 3 m (10 ft) •>0.024 l/min @ 3 bar from 10 m (33 ft) Absolute minimum detection in quiet environment: 0.004 l/min @ 1.2 bar from <1 m (3.0 ft)

Imaging & Optical
Camera software update	Automatic over Wi-Fi
Digital Camera FOV	62° × 49°
Video Frame Rate	25 fps
Video Image Resolution	800 × 480
Zoom	2x Digital zoom

Measurement & Analysis
Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Bandwidth	2 kHz to 65 kHz, adjustable range
Distance	From 0.3 m (1 ft) up to 130 m (430 ft)
Leak Rate	In typical industrial environment: •>0.011 l/min @ 3 bar from 3 m (10 ft) •>0.024 l/min @ 3 bar from 10 m (33 ft) Absolute minimum detection in quiet environment: 0.004 l/min @ 1.2 bar from <1 m (3.0 ft)

User Interface
Display	Size: 5 in. 800 × 480
Input Device	Resistive touchscreen
Languages	Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Indonesian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese
Power On Indicator	LED (red)

Power
Battery	Li-Ion rechargeable battery pack (RRC 2040): 10.8 VDC, 3.35 Ah, 36.2 Wh Usage: Up to 2.5 h (depends on ambient conditions) Charge time: Approximately 2 h Max output: 12.6 VDC 4A
Battery Charger	Input: 19-26 VDC, 2.8 A, Max output: 17.4 VDC, 4.8 A
Battery weight	0.17 kg (0.37 lb)
Internal Battery	Li-ion 6 Wh
Power Input	Nominal input voltage 12 VDC, Max input: 15 VDC 2.5 A

Environmental & Certifications
Operating Temperature Range	-10°C to 50°C (14°F to 122°F)
Protection Class	IP51
Relative Humidity	Recommended 0 to 90%
Storage Temperature Range	-20°C to 70°C (-4°F to 158°F)
Warranty	http://www.flir.com/warranty/

General
Battery Size	85 × 59 × 22 mm (3.34 × 2.31 × 0.86 in)

Accessories
Software	FLIR Acoustic Camera Viewer (free web-based analysis and simple acoustic reporting), FLIR Thermal Studio Suite (offline, desktop software with advanced capabilities including thermal and acoustic images on the same page)

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
