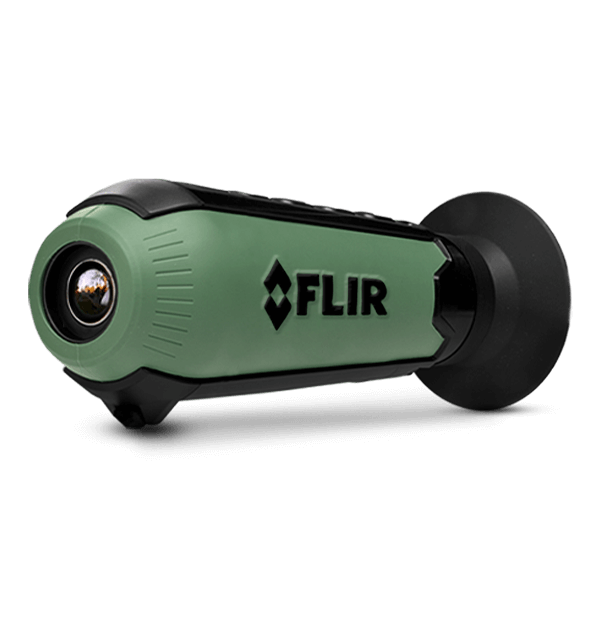

FLIR Scout TK
Pocket-Sized Thermal Vision Monocular
The FLIR Scout TK is a pocket-sized thermal vision monocular for exploring the outdoors at night and in lowlight conditions. Scout TK reveals your surroundings and helps you see people, objects and animals over 100 yards (90 m) away. Simple to use, with still image and video recording, Scout TK is the perfect companion, whether in the back country or your own backyard.
Specifications
| Sensor & Optical | |
|---|---|
| Detector Type | 160 × 120 VOx Microbolometer |
| Field of view [FOV] | 20° × 16° |
| Image Processing | FLIR Proprietary Digital Detail Enhancement™ |
| Environmental & Approvals | |
|---|---|
| Drop Test Rating | 2 m |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Rating | IP-67, Submersible |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Power | |
|---|---|
| Battery Life [Operating] | >5 Hours |
| Battery Type | Internal Li-Ion Cell |
| Start Up Time | < 5 seconds |
| File Storage & Communication | |
|---|---|
| Image Download | USB |
| UI-UX | |
|---|---|
| Brightness Button | Brightness (toggle up<>down) |
| Built_in Display | 640 × 480 LCD Display |
| Image Capture | Short press for Image capture, long press for Video capture |
| On_Screen Symbology | Standard |
| Palette Button | Short press to toggle thru LUT's |
| Power Button | On / Off |
| Splash Screen | Generic |
| Video Refresh Rate | <9Hz |
| System Overview | |
|---|---|
| Color palettes | Black Hot / White Hot / InstAlert™ / Rainbow / Iron / Lava / Arctic / Graded Fire |
| Package Includes | Handheld Thermal Camera,Neck Lanyard, USB Cable, Lens Cap |
| Shutter | Yes |
| Size [L x W x H] | 6.0" × 2" × 2" |
| Warranty | 2 years standard, 3 years with product registration |
| Waveband | 7.5 - 13.5 µm |
| Weight [incl lens] | 6 oz (170 g) |
Resources & Support
User Manual
Scout TK User Manual
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Datasheet
Scout TK Datasheet
Quick Start Guide
Scout TK Quick Start Guide
Tech Note
Your Perfect Palette
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
