FLIR RS8513-HS InSb

High-Speed MWIR Camera for Range & Science Applications

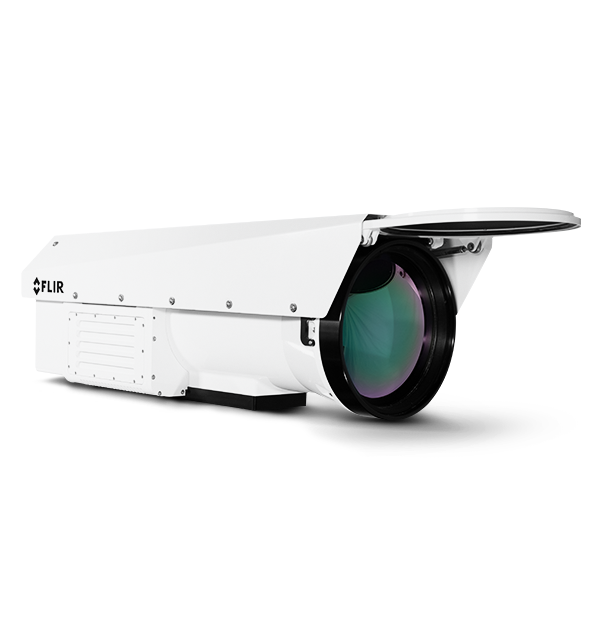

The FLIR RS8513-HS MWIR infrared camera system is a high-performance thermal camera and infrared telescope combined in a single weatherproof housing, specifically designed for long-range tracking and measurement applications including military range, aerospace, and outdoor research. Built around a high-resolution 1280 × 1024 midwave indium antimonide detector with the ability to deliver data up to 180 frames per second, the RS8513-HS InSb provides 24% more pixels and a 46% faster frame speed than the previous model. Multiple simultaneous data and video output options allow the camera to be easily integrated into most data acquisition systems.

This high-performance infrared camera features a 10X continuous zoom lens with TSPI-accurate time stamping of images and metadata all in a single weatherproof housing
Easily capture high-speed thermal data in full HD resolution on long-range and high-temperature targets with the 1.3 megapixel MWIR indium antimonide detector and internal warm filter wheel
View, record, and analyze data easily in FLIR Research Studio using the available 10 GigE, or CoaxPress digital data connection options while having full control over the advanced triggering and synchronization capabilities

Resources & Support

Datasheet

FLIR RS8513-HS InSb Datasheet

Download

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
