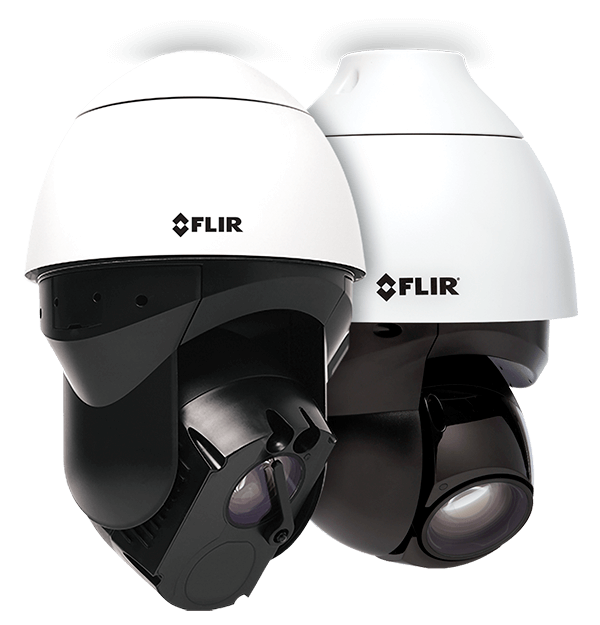

Quasar™ 4K IR PTZ Cameras
VISIBLE PTZ SECURITY CAMERAS
With crisp 4K video resolution, on-board long-range IR illumination, and 22x or 31x optical zoom options, FLIR Quasar™4K IR PTZ cameras deliver critical situational awareness. Exceptional field of view gives operators the ability to seamlessly monitor key details throughout large areas. The combination of high-performance optics and sensors, exceptional low light visible imaging, and effortless integration with all major third-party VMS and FLIR United VMS makes Quasar 4K IR PTZ cameras an ideal solution for critical infrastructure sites and remote facilities that require close monitoring.
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN 50130-4, EN61000-6-4 (Class A), RoHS, LVD, NEMA 4X, WEEE |
| MTBF [hrs] | |
| ONVIF Compliance | ONVIF Profile S |
| USA | FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User credentials with policy, protection from brute force attack, TLS |
| Environmental | |
|---|---|
| Humidity | 0% ~ 95% relative |
| Operating Temperature | -40° to 60°C (-40° to 140°F) cold start |
| Storage Temperature | -55° to 85° C (-67°to 185° F) |
| General | |
|---|---|
| 3D Noise Reduction | On / Off |
| AGC Control | Auto |
| Day_Night: IR Cut Filter | Auto / Manual |
| Dimensions | 268 X 409 mm (10.55 x 16.1 in.) |
| Enclosure Rating | IK10 Upper / IP66 Overall |
| Firmware Upgrade | Flash upgrade via network (1GB Flash / 2GB RAM) |
| Input Voltage | 24VAC (+/- 10%) Universal POE injector |
| MTBF | |
| Power Connection | PoE / Terminal Block |
| Power Consumption | Max 61W 24VAC/43W POE with heater and IR on |
| Scanning Mode | |
| Tamper Detection | |
| Unit Weight | 9.12 Kg (20.1 lbs.) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Measurement & Analysis | |
|---|---|
| Maximum resolution | 3840x2160 (4KUHD) |
| PTZ | |
|---|---|
| Auto Flip | Mechanical / Off |
| Auto Pan | |
| Home Function | |
| Horizontal Viewing Angles | 61.8° (Wide) to 2.15° (Tele) |
| Manual Speed | Pan: 0.1° to 90°/s, Tilt: 0.1° to 60°/s |
| Pan_Tilt Travel | 360° continuous /-10°to 190° |
| Pattern | |
| Preset Accuracy | Pan: 0.16° Tilt: 0.18° |
| Preset Speed | 5° to 280° / sec |
| Presets | 256 |
| Presets_Preset Accuracy | Pan: 0.1° Tilt: 0.1° |
| Proportional Pan and Tilt | On / On (pan and tilt speed proportional to zoom ratio) |
| Sequence | |
| Tilt Travel | -10° to 190° |
| System Integration | |
|---|---|
| Alarm | |
| Alarm In | 4 dry contact in |
| Alarm IO | 4 dry contact In - 2 relay Out |
| Alarm Output | 2 relay out |
| Alarm Reaction | |
| Audio Bandwidth | Configurable between 16 kbps and 64 kbps |
| Audio Connections | Terminal block |
| Bi_directional Audio | Full duplex, line in/line out, G.711 |
| Configuration | Remote: via web access or supported VMS |
| Distance | Angle of illumination | Up to 200 m (656 ft.) | 6° / 30° / 90° |
| Ethernet | 10 /100/1000 Mbps Base-T auto sensing, half / full duplex (RJ45) |
| LED Type | High efficiency SMD |
| Network Protocol | IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, ONVIF Profile S, IEEE 802.1X, TLS |
| Remote Configuration | Via web access or supported VMS |
| Supported Web Browser | Chrome (recommended), Firefox, Edge, and Safari (no ActiveX required) |
| Thermal Camera | |
|---|---|
| AGC | |
| Digital Zoom | 31x / Up to 8x |
| DSS | |
| Focal Length | 6.5 mm to 202 mm |
| Image Sensor | 1/1.8" CMOS |
| Image Stabilization | |
| Minimum Illumination | 0.25 Lux (color) @ (f1.6 AGC On, 30FPS) / 0.10 Lux (BW) @ (f1.6 AGC On, 30 FPS) |
| Optical Zoom | 31x |
| Wide Dynamic Range | Shutter WDR, 130db |
| Visible Camera | |
|---|---|
| AGC | |
| Backlight Compensation | |
| Digital Zoom | 31x / Up to 8x |
| DSS | |
| Focal Length | 6.5 mm to 202 mm |
| Focus Mode | Auto / Manual |
| Image Rotation | |
| Image Sensor | 1/1.8" CMOS |
| Image Stabilization | |
| Iris Control | Auto |
| Minimum Illumination | 0.25 Lux (color) @ (f1.6 AGC On, 30FPS) / 0.10 Lux (BW) @ (f1.6 AGC On, 30 FPS) |
| Noise Reduction | On / Off |
| Optical Zoom | 31x |
| Optical_Digital Zoom | 31x / Up to 8x |
| Sensor Resolution | |
| Signal to Noise Ratio | |
| WDR | Shutter WDR, 130db |
| White Balance | Auto, ATW, Manual |
| Wide Dynamic Range | Shutter WDR, 130db |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 fps @ 4K (NTSC/PAL) & H.264 30/25 fps @ VGA (NTSC/PAL) |
| Rate Control | CBR / VBR |
| Resolution Range | Scalable from VGA to 4K |
| Video Bandwidth | |
| Video Compression | Two independent channels of H.264 & M-JPEG |
