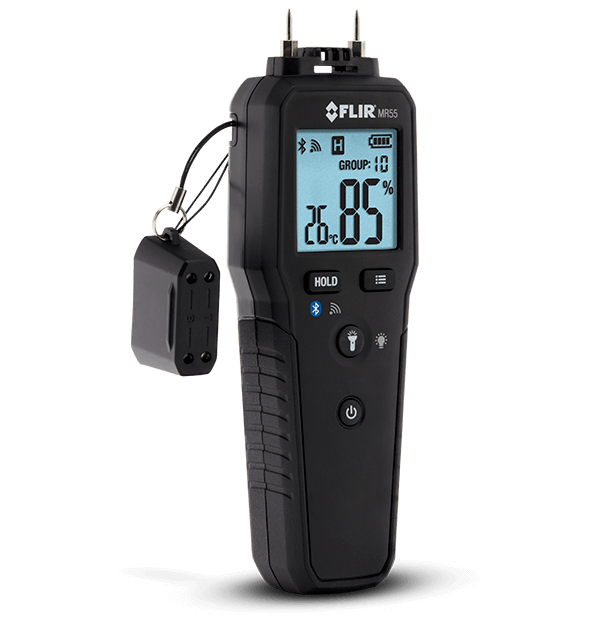

FLIR MR55

Pin Moisture Meter with Bluetooth®

184,00 € ex. VAT

220,80 € inc. approx. VAT (20 %)

BUY NOW

The FLIR MR55 is a pin-based meter with wireless connectivity, which offers the convenience to view readings from a mobile device via the METERLiNK® app. Thanks to a built-in library of 11 material groups, users can tune the meter to the appropriate test material to improve measurement accuracy. This library is easy to access on the FLIR.com website by scanning a QR code on the back of the meter with a mobile device.

An accurate and reliable meter with wireless connectivity

Test from 11 material groups with pin probes. Measurements automatically compensate for ambient temperature.

Use Bluetooth® to view readings from a mobile device.

Features replaceable electrode pins, standard AA batteries, a backlit display, and a bright worklight to help make your job seamless.

Specifications

Highlighted
Pin Moisture	Wood Range: 7% to 29% (±2% MC accuracy); 30% to 99% (Reference Only) / Building Material Range: 1% to 99% Group 10, 1 to 35% Group 11 (Reference Only)
Pin Moisture Groups	Wood Type: Groups 1–9; Building Materials: Groups 10 and 11
Relative Humidity	Range 0-10% / Accuracy ±4%; Range 10-85% / Accuracy ±2%
Display	Backlit, multifunction LCD

Measurement & Analysis
Measurement Principle	Electrical resistance using pins
Pin Moisture	Wood Range: 7% to 29% (±2% MC accuracy); 30% to 99% (Reference Only) / Building Material Range: 1% to 99% Group 10, 1 to 35% Group 11 (Reference Only)
Pin Moisture Groups	Wood Type: Groups 1–9; Building Materials: Groups 10 and 11

Communication & Data Storage
Connectivity	Bluetooth BLE; Communications Protocol: METERLiNK®

User Interface
Display	Backlit, multifunction LCD

Power
Auto Power Off [APO]	After 20 minutes
Battery Life	Typical 70 hours without worklight
Battery status indicator	4-bar battery icon (100% to empty)
Battery Type	(2) x 1.5 V AA

General
Dimensions	188 × 58 × 33 mm (7.4 × 2.3 × 1.3 in)
Electrode Pins	Integrated, replaceable, 10 mm (0.4 in)
Housing material	Impact-resistant plastic
Weight	160 g (5.6 oz) battery excluded
Work light	White LED
Worklights

Environmental & Certifications
Ambient temperature range	0°C to 50°C (32°F to 122°F) / Accuracy: ±1°C (2°F)
Certifications	CE, RCM, FCC/IC
Drop test	2 m (6.6 ft)
IP Rating	IP40
Relative Humidity	Range 0-10% / Accuracy ±4%; Range 10-85% / Accuracy ±2%
Warranty	Limited 3 years
