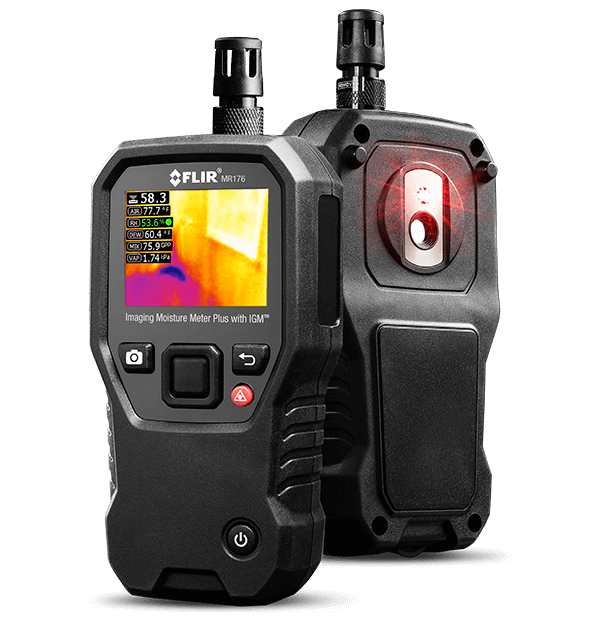

FLIR MR176

IGM™ Moisture Meter with Replaceable Hygrometer

1 199,00 € ex. VAT

1 438,80 € inc. approx. VAT (20 %)

Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot that moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.

Get more flexibility from your moisture meter

IGM helps you visually identify hidden moisture so you’ll know exactly where to place the meter probe for further investigation

The field-replaceable temperature and relative humidity sensor can simply be removed and replaced when needed to reduce unnecessary downtime.

Get more done with the easy-to-navigate menu system. Share readings and images, and quickly create reports with free FLIR Tools software.

Specifications

Highlighted
Thermal image palettes	Iron, Rainbow, Ice, Greyscale
Pin Moisture	Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups	9 Material Groups
Air Temperature	Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
Relative Humidity	Range 0 to 100% / Basic Accuracy 2.5%RH
Dew Point	Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
Includes	MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable

Imaging & Optical
Display Type	QVGA (320 x 240 pixel) 2.3" color TFT graphical display
Field of View [W x H]	51° × 38°
Gallery	17540
Image Update Speed Frequency	9Hz
Imaging Detector	FLIR Lepton microbolometer
Laser Orientation	Single laser pointer to center of thermal image
Sensitivity	<150mK
Spectral Response	8 to 14µm
Thermal image minimum focus distance	4" (10cm)
Thermal image palettes	Iron, Rainbow, Ice, Greyscale
Thermal Image Resolution [W x H]	4800 pixels (80 × 60)

Measurement & Analysis
Air Temperature	Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
Detection Limit	19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m)
Dew Point	Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
Image Calibration	Automatic with manual lock scale option
Measurement Resolution	0.1
Pin Moisture	Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
Pin Moisture Groups	9 Material Groups
Pinless Measurement Depth	0.75" (19mm) Max
Pinless Moisture Range	0 to 100
Response Time Pin Mode	750ms
Response Time Pinless	100ms

Communication & Data Storage
Saved Image File format	BMP with measurement values overlaid
Stored Image Capacity	9999 images

Power
Battery	3.7V, 3000mAh Li-ion rechargeable via micro USB
Continuous Run Time	18 hours max
Typical Usage	4 work weeks

General
Includes	MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable
Packaging Size	33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.)

Environmental & Certifications
Agency Approvals	CE, FCC Class B, RCM
Certification Standards	EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
Mixing Ratio	Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg)
Relative Humidity	Range 0 to 100% / Basic Accuracy 2.5%RH
Vapor Pressure	Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa
Warranty	10 year

Accessories

Pins

Sensors

Cases

Protective Case for FLIR Moisture Meters (MR10-2)

Probes

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
