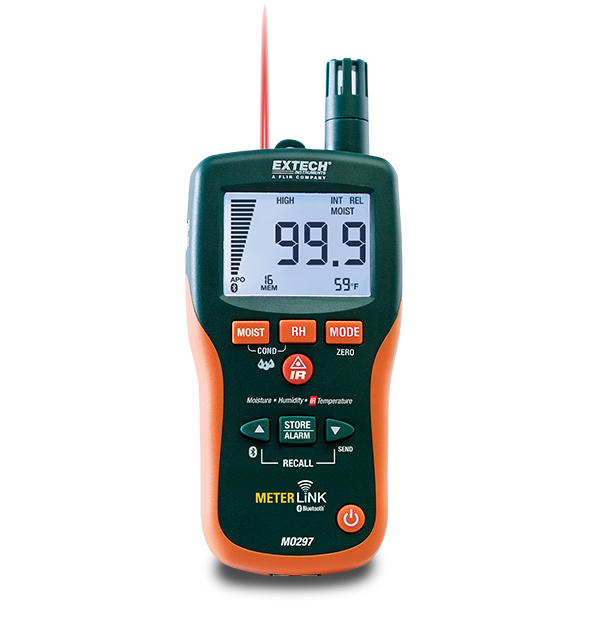

Extech MO297
Pinless Moisture Psychrometer with IR Thermometer and Bluetooth METERLiNK™
The Extech MO297 is an 8 in 1 Pinless Moisture Psychrometer with a built in infrared (IR) thermometer and Bluetooth MeterLink™ transmitter. It can wirelessly transmits moisture and humidity data to select FLIR thermal imaging IR cameras to incorporate meter readings with thermal images. The pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage. A remote pin-type probe can be used for contact moisture readings in hard to reach or hazardous areas. Complete with the pin probe cable, 9 V battery, and a case.
Specifications
| General | |
|---|---|
| Bluetooth METERLiNK[TM] | Yes |
| Dew Point | -22 to 199 °F (-30 to 100 °C) |
| Distance to Target Ratio | 8:1 |
| Emissivity | 0.95 fixed |
| Measurement Depth | up to 0.75" (19mm) |
| Memory | Manually store/recall 20 data readings |
| Relative Humidity | 0 to 100% |
| Relative Humidity Basic Accuracy | ±3% |
| Relative Moisture Content Max Resolution [Pinless] | 0.1 |
| Relative Moisture Content [Pinless] | 0 to 99.9 |
| Sensor Type | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| Temperature [Air] | -20 to 170 °F (-29 to 77 °C) |
| Temperature [Air] Basic Accuracy | ±3.6°F (2.0°C) |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Temperature [IR] Basic Accuracy | -4 to 392 °F (-20 to 200 °C) |
| Temperature [IR] Max Resolution | ±3.5% or ±9°F(4.5°C) whichever greater |
| Temperature [RTD] | 0.1°F/°C |
| Vapor Pressure | 0 to 20.0kPA |
| Water Vapor | 0 to 999gpp (0 to 160g/kg) |
| Wireless Connectivity | Bluetooth |
| WME Moisture Content Basic Accuracy [Pin] | ±5% |
| WME Moisture Content Max Resolution [Pin] | 0.1 |
| WME Moisture Content [Pin] | 0 to 99.9% |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 7.4oz (210g) |
