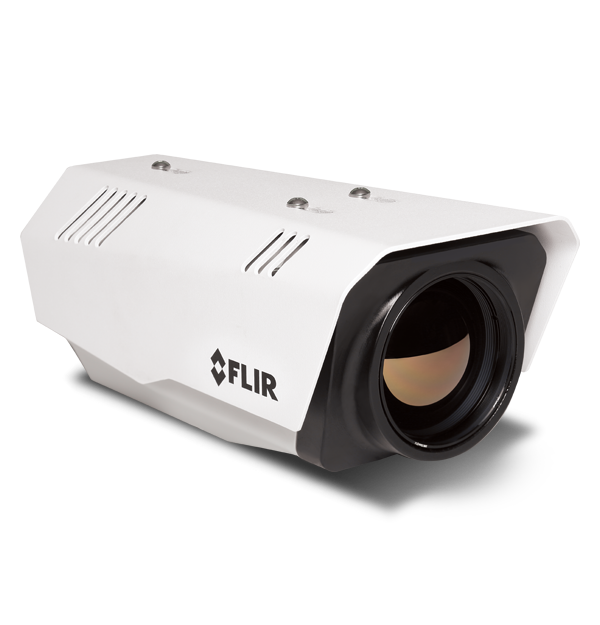

ITS Series
Thermal imaging camera for traffic monitoring
FLIR ITS-Series sensors deliver superior image accuracy and reliability for traffic monitoring applications. ITS-Series thermal imaging sensors can monitor vehicles in a wider variety of conditions than traditional visible-light sensors. By detecting the heat of all objects in the scene, the FLIR ITS-Series operates in broad daylight or total darkness, poor weather and even light fog. Combined with FLIR’s video analytics boards, the FLIR ITS-Series makes a great solution for Automatic Incident Detection (AID).
Specifications
| Communications | |
|---|---|
| Analog Video Output | NTSC, PAL or PAS 8.3Hz |
| Video Over Ethernet | Two independent channels of H.264 or M-JPEG |
| Electrical | |
|---|---|
| Power Consumption, Source – 12VDC | Heater off: <5.5 W Heater on (at 100%): <25 W |
| Power Consumption, Source – 24VAC[VA] | Heater on: <8 W Heater off (at 100%): <32 W |
| Power Consumption, Source – 24VDC | Heater on: <5.5 W Heater off (at 100%): <25 W |
| Power Consumption, Source – POE [802.3af] | Heater on: <5.5 W Heater off (at 100%): N/A |
| Power Consumption, Source – POEPlus [802.3at] | Heater on: <5.5 W Heater off (at 100%): <25 W |
| Surge Immunity on Signal Lines | EN 55024:2010 and 55022:2010 to 4.0kV |
| Environmental | |
|---|---|
| Humidity | 0-95% relative humidity |
| IP Rating | IP66 & IP67 |
| Operating Temperature Range | -50° to 70°C (-58° to 158°F) continuous operation -40° to 70°C (-40° to 158°F) cold start |
| Shock | MIL-STD-810G "Transportation" |
| Standard Package | Thermal imaging camera, operator manual |
| Storage Temperature Range | -50° to 85°C (-58° to 185°F) |
| Surge Immunity on AC Power Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV on AC aux power lines; EN 50130-4:2011; IEC 62599-2:2010 |
| Vibe | IEC 60068-2-27 |
| Imaging & Optical | |
|---|---|
| Automatic Heater | Clears ice from windows, Automatic deicing |
| Detector Type | Focal Plane Array (FPA), uncooled VOx microbolometer |
| Field of View | FLIR ITS317, FLIR ITS617: 17° x 14° FLIR ITS324: 24° x 18° FLIR ITS625: 25° x 19° FLIR ITS332, FLIR ITS632: 32° x 26° FLIR ITS344, FLIR ITS644: 44° x 36° |
| Image Processing | Automatic Gain Control (AGC), Digital Detail Enhancement (DDE) |
| Resolution | FLIR ITS317, FLIR ITS324, FLIR ITS332, FLIR ITS344: 320 x 256 FLIR ITS617, FLIR ITS625, FLIR ITS632, FLIR ITS644: 640 x 512 |
| Spectral Range | 7.5 to 13.5 µm |
| Regulatory | |
|---|---|
| Approvals | CE: EN55022 Class A; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits) |
Resources & Support
Datasheet
ITS Series Datasheet A4
Datasheet
ITS Series Datasheet
Brochure
FLIR Intelligent Transportation Systems (ITS) Guidebook
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
