Extech IR201A
Pocket IR Thermometer

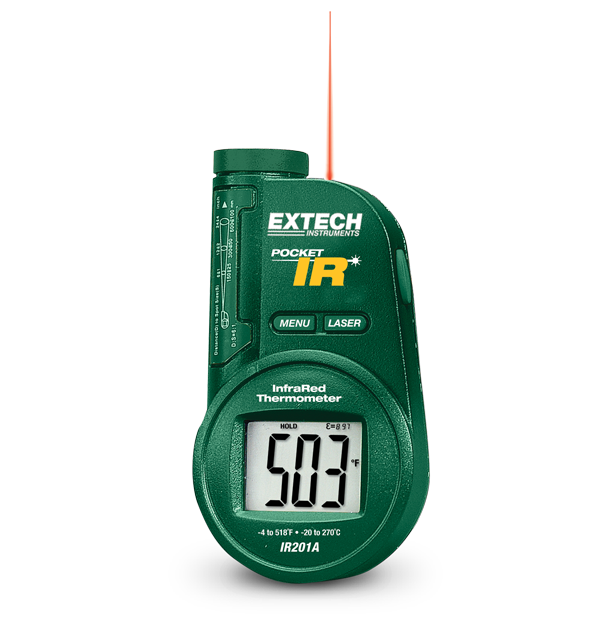

The Extech IR201A is a wide range non-contact Infrared Thermometer with a built-in laser pointer to identify target areas and improve aim. It has a wide temperature range of -20°C to 270°C (-4°F to 518°F), adjustable emissivity for better accuracy on different surfaces, and a lock mode for continuous scanning, all in a convenient, pocket-sized design. The IR201A features data hold, max hold, auto power off functions. Complete with two AAA batteries and pouch case.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 6:1 |
| Emissivity | 0.1 to 1.0, adjustable |
| Targeting | single laser |
| Temperature [IR] Basic Accuracy | -4 to 518 °F (-20 to 270 °C) |
| Temperature [IR] Max Resolution | ±2.5% of reading + 3.6 °F/2 °C |
| Temperature [RTD] | 0.1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.7 × 2 × 1" (94 × 51 × 25mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 2.7oz (76g) |
Resources & Support
User Manual
Extech IR201A User Manual
Certification
Extech IR201A Declaration of Conformity
Datasheet
Extech IR201A Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
