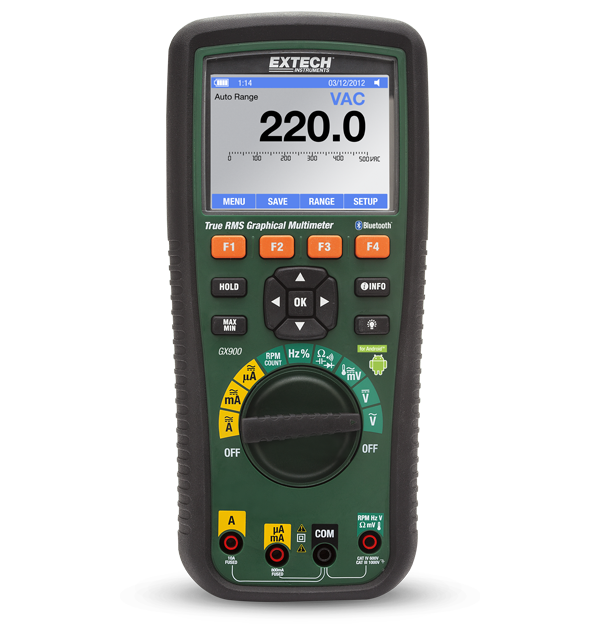

Extech GX900
True RMS Graphical MultiMeter with Bluetooth®
The Extech GX900 is a True RMS Graphical Multimeter with Bluetooth® which transmits key electrical readings to Android mobile devices. The GX900 measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, conductance, RPM, ACV bandwidth, and diode continuity. It features a 50,000 count display with bargraph, a free Android app, data logging (to 2500 readings), Windows compatible software, peak hold, min/max/average modes, relative (%), data hold, automatic data hold, and an auto power off function. Meter comes with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, and six AA batteries.
Specifications
| General | |
|---|---|
| AC Current | 0.01µA to 10A |
| AC Voltage | 0.001mV to 1000V |
| Capacitance | 0.001nF to 10mF |
| Conductance | 50µS |
| Continuity | Yes |
| DC Current | 0.01µA to 10A |
| DC Voltage | 0.001mV to 1000V |
| Diode Test | 3.2V |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 40.00Hz to 10kHz; Electronic: 0.001Hz to 10MHz |
| Frequency Bandwidth | 100kHz |
| Resistance | 0.001Ω to 50MΩ |
| Rotation Speed [Inductive Pickup] | 12,000RPM |
| Signal [dBm_dBV] | -70 to 60dB (nine selectable impedances) |
| Temperature [Type K] Max Resolution | -58 to 1832 °F (-50 to 1000 °C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, FC |
| Dimensions | 9.25 × 4.25 × 2.5" (235 × 108 × 63.5mm) |
| Display | 50000-count TFT LCD with bargraph |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CATIII -1000V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 1.85lbs (839g) |
Resources & Support
User Manual
Extech GX900 User Manual
Certification
Extech GX900 Declaration of Conformity
Datasheet
Extech GX900 Datasheet
