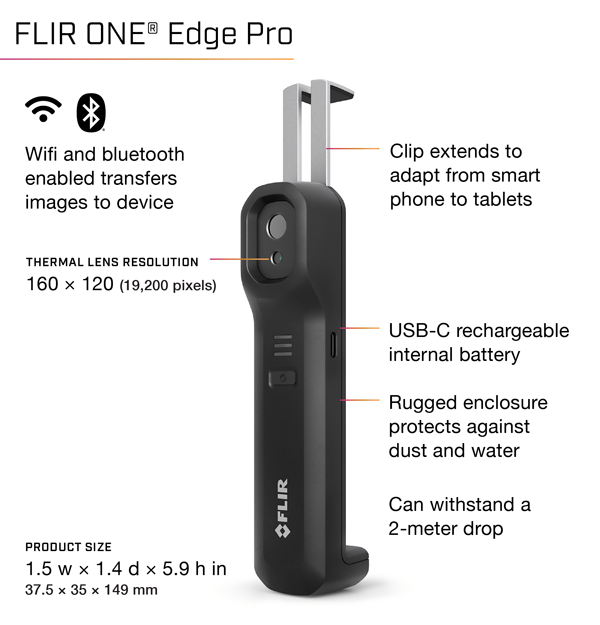

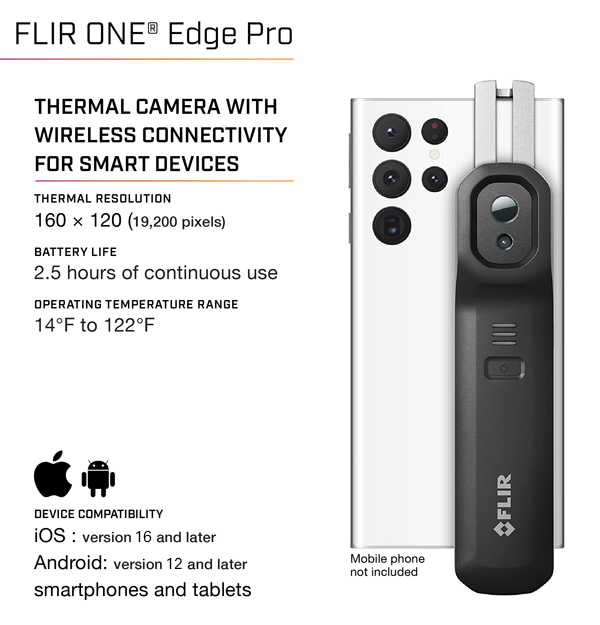

FLIR ONE® Edge Pro

Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices

499,00 € ex. VAT 399,00 € ex. VAT

478,80 € inc. approx. VAT (20 %)

BUY NOW

Compatible with the NEW iPhone 15

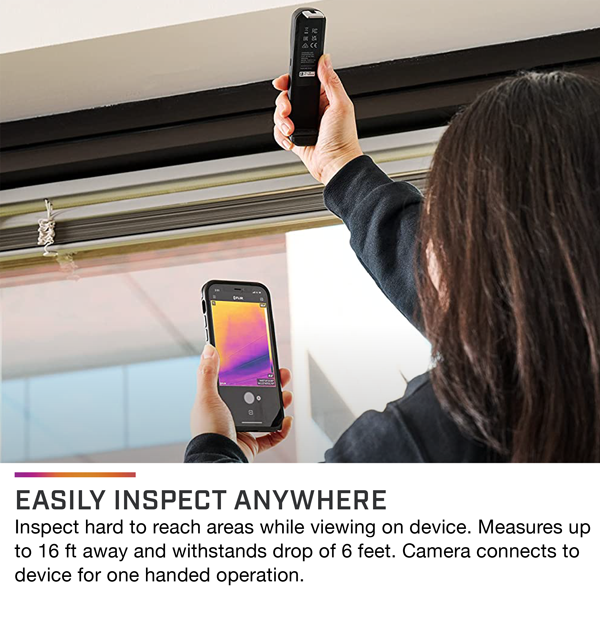

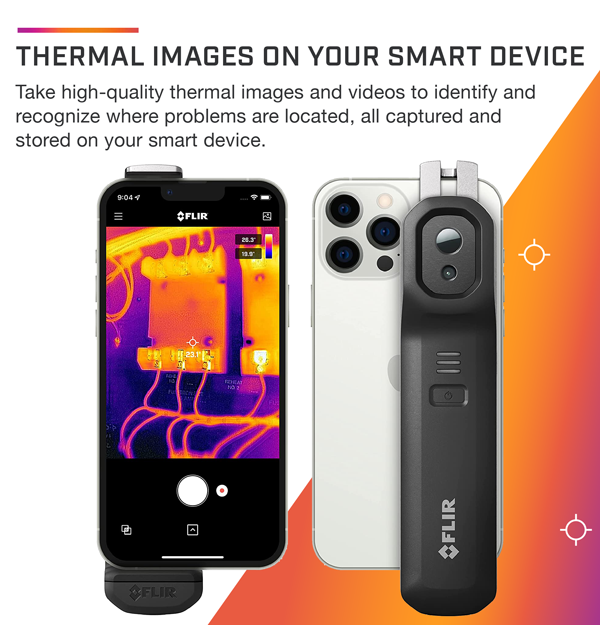

The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach – or clip it onto your phone or tablet for one-handed operation. This thermal camera for smart phones combines VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging) so you can take crisp thermal images from any angle. Improved battery time and ruggedness makes sure the camera is ready to use in more industrial environments. The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your friends and colleagues. All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use. Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow.

Specifications

Highlighted
Thermal Resolution	160 × 120 (19,200 pixels)
Battery Life	Approximately 2 hours 30 minutes
Object Temperature Range	-20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
Accuracy	±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
Operating Temperature	-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
Spot Meter	Hottest, Coldest and 3 spot measurement

Imaging & Optical
Adjustable MSX distance	30 cm — Infinity
Focus	Fixed 30 cm — Infinity
Frame Rate	8.7 Hz
HFOV_VFOV	54° ±1° / 42° ±1°
Image Modes	Infrared, visual, MSX
Palette	Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
Shutter	Automatic/Manual
Thermal Resolution	160 × 120 (19,200 pixels)
Thermal Sensitivity_NETD	70 mK
Thermal Sensor	Pixel size 12 µm, 8 — 14 µm spectral range
Visual Resolution	640 × 480
VividIR	Yes

Power
Battery charge time	60–90 min for fully charged 15 min charging, from empty battery, gives 40 min operating time
Battery Life	Approximately 2 hours 30 minutes
Charging Method	Female USB-C (5V/1A)

Measurement & Analysis
Accuracy	±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
Measurement Corrections	Emissivity; Reflected apparent temperature (22°C / 72°F)
Object Temperature Range	-20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
Spot Meter	Hottest, Coldest and 3 spot measurement

General
Battery charge monitor	0 — 100%
Clip Span	130 mm (min) / 195 mm (max)
Compatible with FLIR software	FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
Device Compatibility	iOS (version 16 and later) or Android (version 12 and later) smartphones and tablets
Dimensions [H x W x D]	37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
Form Factor	Phone
Remote Operation	Up to 5 m (16.4 ft) from smart device via Wi-Fi
Weight	153 g (5.4 oz)

Environmental & Certifications
Certifications	RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
Drop test	Drop from 2 m (6.56 ft)
Emissivity Settings	Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Non Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Temperature	-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)

Communication & Data Storage
Bluetooth	Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
Capture modes	Video, Still image
Charging	Female USB-C (5V/1A)
File Formats	Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
WiFi	IEEE 802.11 a/b/g/n
