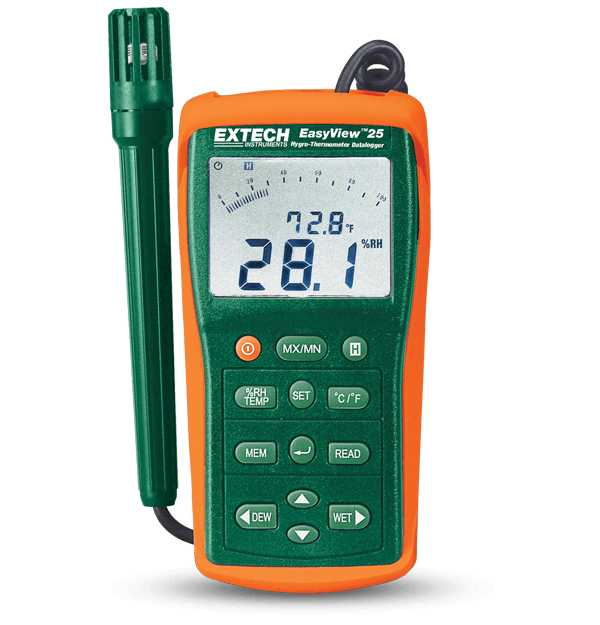

Extech EA25
EasyView™ Hygro-Thermometer and Datalogger
The Extech EA25 Hygro-Thermometer and Datalogger datalogs up to 15,000 records for PC download. Display any two parameters like temperature, humidity, dew point, or wet bulb simultaneously. The min/max function stores and recalls the highest and lowest readings, while also displaying the elapsed time to the minimum and maximum readings. The EA25 comes with a programmable auto power off, switchable °C/°F temperature units, and a data hold function that freezes readings on display. Complete with built-in stand, protective holster, probe with 1 m (39 in) coiled cable, software and optically isolated RS-232 cable, and 6 AAA batteries.
Specifications
| General | |
|---|---|
| Relative Humidity | 10% to 95% |
| Relative Humidity Basic Accuracy | ±3% (30% to 95%), ±5% (10% to 30%) |
| Relative Humidity Max Resolution | 0.1% |
| Temperature [Air] | -4 to 140 °F (-20 to 60 °C) |
| Temperature [Air] Basic Accuracy | ±1.8 °F ( ±1 °C) |
| Temperature [Air] Max Resolution | 0.1 °C/°F |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.9 × 2.8 × 1.4" (150 × 72 × 35mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.3oz. (235g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech EA25 Software
User Manual
Extech EA25 User Manual
Datasheet
Extech EA20 EA25 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
