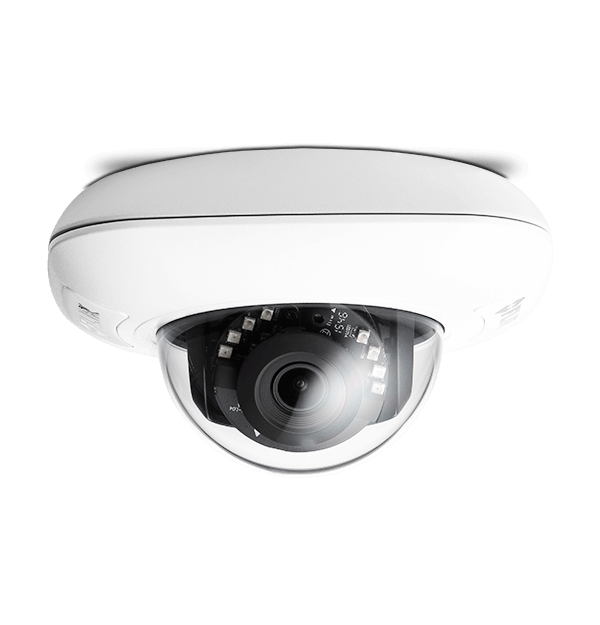

FLIR ARIEL™ CM-3102
Full HD Mini-Dome
The Ariel CM-3102 mini-dome camera with Full HD 1080p video guarantees frame rates in complex, high motion, and low light scenes found in airports, critical infrastructure sites, commercial offices and campuses.Through its motion processing architecture, the Ariel mini-dome also delivers predictable storage, reducing overall utility costs and Total Cost of Ownership (TCO).
Specifications
| Cyber Security | |
|---|---|
| Security | User account with password protection and IP filter |
| General | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| Day_Night Mode | Yes |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Tamper Detection | Yes |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| System Integration | |
|---|---|
| Angle of Illumination | Full 60° |
| Ethernet | 10/100, auto sensing, half / full duplex (RJ45) |
| IR Distance | up to 30 m (98 ft.) |
| LED Type | high efficiency SMD |
| Network Protocol | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Peak Emission Wavelength [nm] | 850.0 |
| Remote Configuration | via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 10+ |
| Thermal Camera | |
|---|---|
| DSS | 1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode |
| Image Sensor | 1/2.8" BSI CMOS |
| Wide Dynamic Range | On / Off (78dB) |
| Visible Camera | |
|---|---|
| Backlight Compensation | On / Off |
| DSS | 1/7.5 to 1/25 or 1/30 with up to 4x sensitivity boost in color or night mode |
| Image Sensor | 1/2.8" BSI CMOS |
| Lens Type | CM-3102-01-I: Fixed 2.8mm, 102° HFOV, F1.8, D/N CM-3102-11-I: Varifocal 3-10.5mm, 88°-31° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D |
| Sensitivity | 0.03 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | 2048 x 1536 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / ATW / Manual / One Push |
| Wide Dynamic Range | On / Off (78dB) |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL) |
| Rate Control | SVBR |
| Resolution Range | Scalable from D1 to FHD 1080p |
| SD Card Recording1 | microSDXC up to 128GB (Class 10) |
| Video Bandwidth | Configurable between 64 Kbps and 20 Mbps |
| Video Compression | Fully compliant multi-stream H.264 main/high profile + MJPEG |
| Video Motion Detection | Yes |
