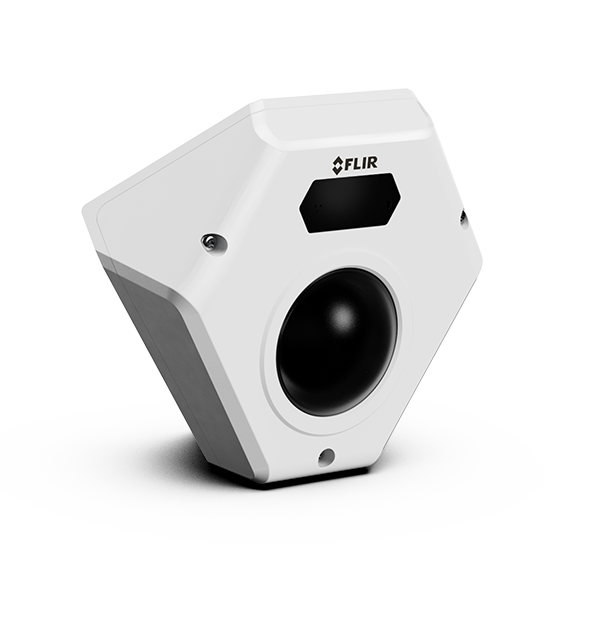

Ariel™ Corner Camera
5 or 8 Megapixel Visible Security Camera
The Ariel 5 MP Corner Camera features a unique corner-shape form factor and extended FOV lens that provides ceiling-to-floor and wall-to-wall coverage. Due to its corner mounting, ligature-free housing and discrete infrared illumination, this camera offers built-in Basic Video Analytics and is an ideal solution for any deployment that requires full coverage from a single camera, including correctional institutions, healthcare facilities, building lobbies and elevators.
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN 61000-6-3, EN 62368-1, EN 50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A |
| MTBF [hrs] | 526,279 (30°C); 149,537 (60°C) |
| ONVIF Compliance | Profiles S, G, M, and T |
| USA | FCC Part 15 (subpart B, class A, ICES-003) |
| Cyber Security | |
|---|---|
| Security | Password protection IP address filtering TLS/HTTPS IEEE 802.1X network access control Digest authentication Password policy: Protect from multiple failure login |
| Environmental | |
|---|---|
| Humidity | 10%–90% (non-condensing) |
| Operating Temperature | CC-3405-01-I 5 MP Corner Camera: -30°C to 55°C (-22°F to 131°F) CC-3408-01-IA 8 MP Corner Camera: -10°C to ~55°C (14°F to ~131°F) – IR off Heater not required |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| General | |
|---|---|
| AES | 1/1 to 1/32,000 |
| BLC | Yes, ON/OFF in linear mode |
| Compression | Enhanced H.265 main profile + Enhanced H.264 main/high/baseline Profile + MJPEG |
| Day_Night Mode | Yes |
| Dimensions | 150 × 82 × 52 mm (59 × 32.3 × 20.5 in) |
| Enclosure | Metal IK10 vandal resistant/IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | PoE IEEE802.3af (class 0), DC 12 V, 24 V AC |
| Power Connection | RJ45, DC, AC |
| Power Consumption | 12.95 W |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 130 dB |
| Tamper Detection | Yes |
| Unit Weight | CC-3405-01-I 5 MP Corner Camera: Net: 1.01 kg (2.22 lb)
Gross: 1.35 kg (2.97 lb) CC-3408-01-IA 8 MP Corner Camera: Net: 1.04 kg (2.29 lb) Gross: 1.39 kg (3.06 lb) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| System Integration | |
|---|---|
| Angle of Illumination | Full 90° |
| Audio | Bidriectional: line in and microphone built-in, G.711 / G.726 / AAC / LPCM, line out |
| Bi_directional Audio | Line in and Microphone built in, G.711/G.726/AAC/LPCM, Line out |
| Distance | CC-3405-01-I 5 MP Corner Camera: 15 m (49.2 ft) CC-3408-01-IA 8 MP Corner Camera: 10 m (32.80 ft) |
| Ethernet | CC-3405-01-I 5 MP Corner Camera: 10/100 mbps CC-3408-01-IA 8 MP Corner Camera: 10/100/1000 mbps, auto sensing, half / full duplex |
| Input | 2 dry alarm contacts, 5 V with 10 KΩ pull up, 100 mA @ room temperature |
| LED Type | High-efficiency SMD |
| Network Protocol | IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP |
| Output | 1 relay contact max. 350 V DC/AC, 130 mA |
| Peak Emission Wavelength [nm] | CC-3405-01-I 5 MP Corner Camera: 940 nm CC-3408-01-IA 8 MP Corner Camera: 850 nm |
| Remote Configuration | Via web browser or supported VMS |
| Supported Web Browser | Firefox, Chrome, Edge, Safari |
| Thermal Camera | |
|---|---|
| AGC | Auto |
| DSS | 1/4 (1/4) – 1/60 (50) NTSC (PAL) |
| Image Sensor | CC-3405-01-I 5 MP Corner Camera: 1/2.7” CC-3408-01-IA 8 MP Corner Camera: 1/2.3” |
| Visible Camera | |
|---|---|
| AGC | Auto |
| Bandwidth | Configurable between 64 kbps and 20 Mbps |
| DSS | 1/4 (1/4) – 1/60 (50) NTSC (PAL) |
| Image Sensor | CC-3405-01-I 5 MP Corner Camera: 1/2.7” CC-3408-01-IA 8 MP Corner Camera: 1/2.3” |
| Lens Type | CC-3405-01-I 5 MP Corner Camera: 2.1 mm, f/2.0, 139.1° HFOV × 101.65° VFOV @ 2592 × 1944 CC-3408-01-IA 8 MP Corner Camera: 2.8 mm, f/2.2, 132.9° HFOV x 98.1° VFOV @ 4000 x 3000 |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | CC-3405-01-I 5 MP Corner Camera: Yes CC-3408-01-IA 8 MP Corner Camera: 3D |
| Sensitivity | CC-3405-01-I 5 MP Corner Camera: B/W: 0.036; Color: 0.172 CC-3408-01-IA 8 MP Corner Camera: B/W: 0.077; Color: 0.37 |
| Sensor Resolution | CC-3405-01-I 5 MP Corner Camera: 5 MP CC-3408-01-IA 8 MP Corner Camera: 8 MP |
| Signal to Noise Ratio | ±45 dB |
| White Balance | Auto |
| Video & Recording | |
|---|---|
| Maximum Performance | HDR 2592 × 1944 @30 + 800 × 600 @30 HDR 2048 × 1536 @30 + 800 × 600 @30 |
| Rate Control | LBR, CBR, VBR |
| Resolution Range | CC-3405-01-I 5 MP Corner Camera: Scalable from SVGA to 5 MP CC-3408-01-IA 8 MP Corner Camera: Scalable from SVGA to 8 MP |
| SD Card Recording | microSD/microSDHC/microSDXC size up to 1 TB |
| Video Bandwidth | Configurable between 64 Kbps and 20 Mbps |
| Video Compression | Enhanced H.265 Main Profile + Enhanced H.264 Main/High/Baseline Profile + MJPEG |
| Video Motion Detection | Yes |
