FLIR A8580 MWIR
Compact HD Thermal Camera

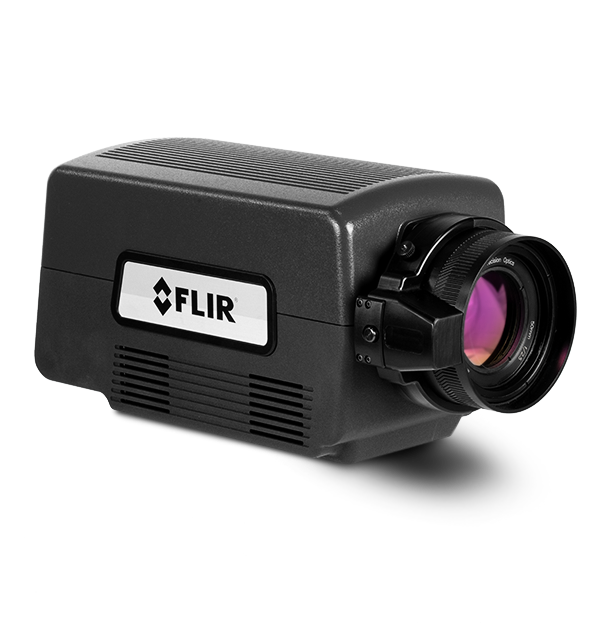

FLIR A8580 MWIR cameras provide the crisp imagery, accurate temperature measurement, and streamlined analysis features needed for industrial, military, and manufacturing R&D applications. The 1.3 MP detector produces high definition thermal images, while the suite of manual and remote focus lenses allow users to maximize the number of measurement pixels on their target. Simple, single cable connectivity using Gigabit Ethernet or CoaXPress provides complete camera control plus data capturing in FLIR Research Studio software, so users can analyze and understand data faster than ever before.
Specifications
| Highlighted | |
|---|---|
| Resolution | 1280 × 1024 |
| Detector Pitch | 12 µm |
| Spectral Range | A8580 InSb, A8582 InSb: 1.5 – 5.0 µm A8581 InSb, A8583 InSb: 3.0 – 5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f_number | A8580 InSb, A8581 InSb: f/2.5 A8582 InSb, A8583 InSb: f/4 |
| Dynamic Range | 14-bit |
| NETD | A8580 InSb, A8582 InSb: ≤40 mK (≤30 mK typical) A8581 InSb, A8583 InSb: ≤30 mK (≤25 mK typical) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to ~45 Hz (GigE), 60 Hz (CXP) |
| Max Frame Rate | Up to ~45 Hz (GigE), 60 Hz (CXP), full window |
| Standard Temperature Range | A8580 InSb: -20°C to 300°C (-4°F to 572°F) A8581 InSb, A8583 InSb: -20°C to 350°C (-4°F to 662°F), -10°C to 350°C (14°F to 662°F) for microscope lenses A8582 InSb: -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range | 45°C to 600°C (ND1), 250°C to 2000°C (ND2), 500°C to 3000°C (ND3) |
| Filtering | Internal 4-position motorized filter wheel; factory installed filters |
| Focus | A8580 InSb, A8582 InSb: Motorized (compatible w/manual lenses, no BB motorized lenses available) A8581 InSb, A8583 InSb: Motorized (compatible w/manual lenses) |
| Imaging & Optical | |
|---|---|
| AGC | Manual, linear, plateau equalization, DDE |
| Ambient Drift Compensation | Yes, with factory calibration |
| Available Lenses | A8580 InSb, A8582 InSb: Manual (broadband): 25 mm, 50 mm, 100 mm
Motorized: TBA A8581 InSb, A8583 InSb: Manual or Motorized: 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Camera f_number | A8580 InSb, A8581 InSb: f/2.5 A8582 InSb, A8583 InSb: f/4 |
| Close_up Lenses_Microscopes | A8580 InSb, A8582 InSb: NA A8581 InSb, A8583 InSb: 1x (12 µm/pixel) or 3x (4 µm/pixel) |
| Detector Pitch | 12 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Digital Data Protocol | Gigabit Ethernet (GigE Vision 2.0), CoaXPress |
| Dynamic Range | 14-bit |
| Filtering | Internal 4-position motorized filter wheel; factory installed filters |
| Focus | A8580 InSb, A8582 InSb: Motorized (compatible w/manual lenses, no BB motorized lenses available) A8581 InSb, A8583 InSb: Motorized (compatible w/manual lenses) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to ~45 Hz (GigE), 60 Hz (CXP) |
| HD Video | SDI |
| Image Time Stamp | Yes |
| Lens Interface | FLIR FPO-M (4-tab bayonet, motorized) |
| Max Frame Rate | Up to ~45 Hz (GigE), 60 Hz (CXP), full window |
| Minimum Integration Time | 480 ns to ~full frame |
| NETD | A8580 InSb, A8582 InSb: ≤40 mK (≤30 mK typical) A8581 InSb, A8583 InSb: ≤30 mK (≤25 mK typical) |
| Operability | >99.5% (99.9% typical) |
| Palette | Selectable 8-bit |
| Pixel Clock | 100 MHz |
| Readout | Snapshot |
| Readout Modes | Asynchronous integrate while read Asynchronous integrate then read |
| Resolution | 1280 × 1024 |
| Sensor Cooling | Linear Sterling cooler |
| Spectral Range | A8580 InSb, A8582 InSb: 1.5 – 5.0 µm A8581 InSb, A8583 InSb: 3.0 – 5.0 µm |
| Subwindow Modes | Flexible windowing down to 32 × 4 (steps of 32 columns, 4 rows) |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9 |
| Zoom | Automatic, variable |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±1°C typical) below 100°C, ±2% of reading (±1% typical) above 100°C |
| Optional Temperature Range | 45°C to 600°C (ND1), 250°C to 2000°C (ND2), 500°C to 3000°C (ND3) |
| Standard Temperature Range | A8580 InSb: -20°C to 300°C (-4°F to 572°F) A8581 InSb, A8583 InSb: -20°C to 350°C (-4°F to 662°F), -10°C to 350°C (14°F to 662°F) for microscope lenses A8582 InSb: -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GenICam (GigE, CXP), RS-232 |
| Synchronization Modes | Sync In, Sync Out |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 226 × 117 × 135 mm (8.9 × 4.6 × 5.3 in) |
| Weight [without lens] | 3.4 kg (8.5 lbs) |
| Power | |
|---|---|
| Power | 24 VDC (<50 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2x ¼"–20 tapped holes, 1x ⅜"–16 tapped hole, 4x 10-24 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F ) |
Accessories
- 3x Microscope Protective Window - MWIR ONLY (4219929)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- FLIR A858x + A678x Camera Filter Holder, Behind The Lens, 1" Diameter, 4-tab FPO Motorized Bayonet (4229763)
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
