Extech 480400
Phase Sequence Tester

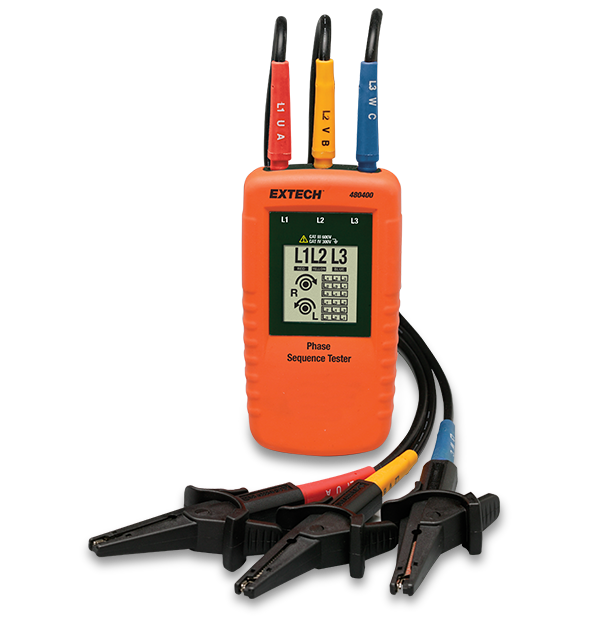

The 480400 Phase Sequence Tester has a 40 to 600-Volt rated range for testing phase orientation of 3-phase power sources over a 15 to 400Hz frequency range. Multiline graphical LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the phases is live. No battery required. Comes complete with cable, three large color coded alligator clips, and pouch case.
Specifications
| General | |
|---|---|
| AC Voltage | 40 to 600V AC |
| Frequency | 15 to 400Hz |
| Phase Sequence | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.1 × 2.7 × 1.25" (130 × 69 × 32mm) |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | 4.5oz (130g) |
