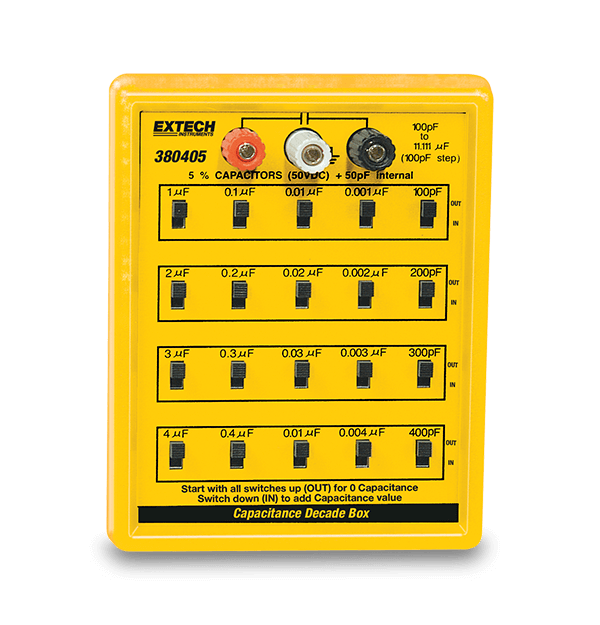

Extech 380405
Capacitance Decade Box
The Extech 380405 Capacitance Decade Box is very popular for product design testing and calibration because it can be substituted into a circuit and function in the place of any component with a standard value easily. Alternatively, it can be used to identify the best value for circuit operation, then read that value from the switches. A capacitor of the size indicated by the decade box switches can then be put into the circuit.
Specifications
| General | |
|---|---|
| Capacitance | 100pF to 11.111uF in 100pF steps |
| Internal Capacitance | 50pF maximum |
| Voltage Limit | 50VDC (non-polarized capacitors) |
| Additional Details | |
|---|---|
| Connector[s] | Three (3) binding posts |
| Dimensions | 5.79 × 4.61 × 1.3" (147 × 117 × 33mm) |
| Warranty | 2 years |
| Weight | 0.69lb (312g) |
Resources & Support
Datasheet
Extech 380400 380405 380500 Datasheet
