TrafiRadar
Video and Radar-based Vehicle Presence Sensor

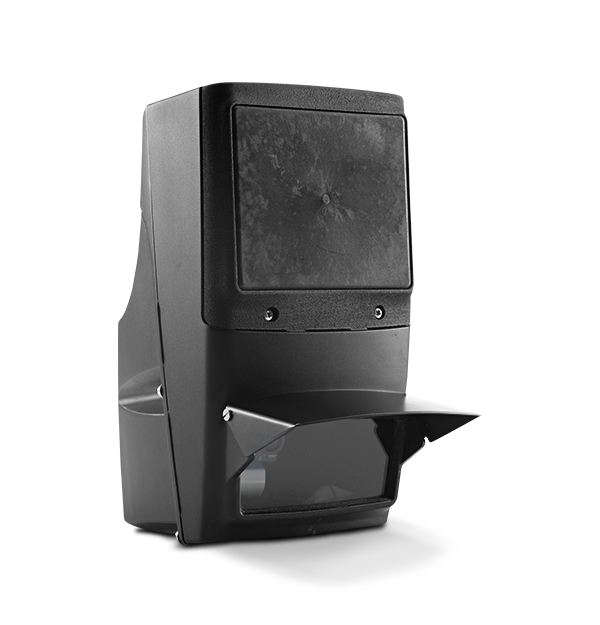

FLIR’s TrafiRadar vehicle presence sensor is a combination of a video sensor and radar. TrafiRadar is typically used for stop bar and advance vehicle presence detection, traffic adaptive systems, and dilemma-zone protection and thus improves traffic safety and efficiency at signalized intersections. TrafiRadar will warn traffic light controllers whenever a vehicle is present in the dilemma zone, either extending green or red lights to improve overall safety.
Specifications
| System Overview | |
|---|---|
| Controllers | For type 170, 2070, NEMA TS1 & TS2 and ATC controllers |
| Detection Functionalities | Conditional presence detection per lane (outputs, events via TCP/IP or serial) |
| Zones | Dilemma zone warning per phase and per vehicle (outputs, events via TCP/IP or serial) |
| Communications | |
|---|---|
| Data | Data per lane and per vehicle (location, count, speed) |
| Output | 4 outputs (output expansion board(s) possible), SDLC via PIM module, TCP/IP |
| Electrical | |
|---|---|
| MTBF | > 100,000 hours |
| Power Consumption | TrafiRadar Sensor: Average power: 7 W (Peak power: 8.5 W) TI X-Stream Edge: 4 W |
| Power Supply | 24 VDC |
| Environmental | |
|---|---|
| EMC | TrafiRadar Sensor: FCC Part 15 Class B, 2004/108/EC TI X-Stream Edge: FCC Part 15, Class B |
| Protection Grade | IP68 |
| Shock_vibration | NEMA TS2 |
| Temperature Range | -34° to 74°C (-29° to 165°F) |
| Imaging & Optical | |
|---|---|
| Camera | Color megapixel camera & Doppler radar |
| Mechanical | |
|---|---|
| Dimensions | 4.5 x 2.2 x 6.5 in (115 x 57 x 165 mm) |
