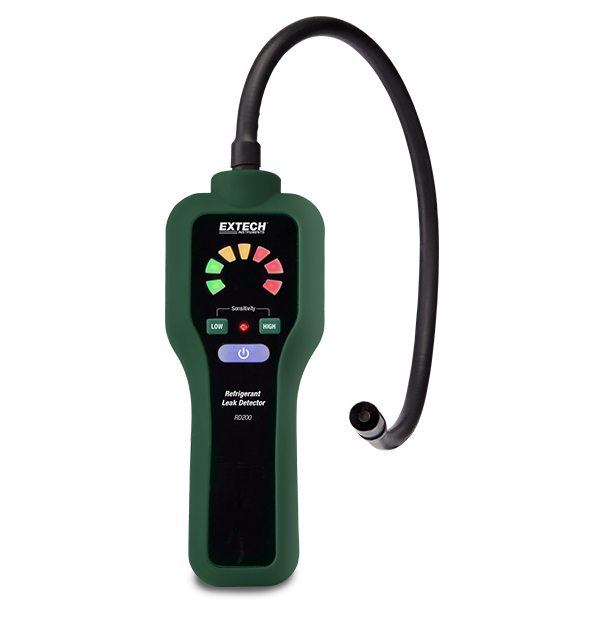

Extech RD200
Refrigerant Leak Detector
The Extech RD200 Refrigerant Leak Detector is easy to use and is ideal for detecting leaks from air-conditioning units and cooling systems that use all standard refrigerants. The multi-colored LED light bar indicates the level of refrigerant detected by the RD200. Features a field replaceable heated diode sensor and low/high sensitivity range selection for accurate leak detection. The 406 mm (16 in) flexible gooseneck provides easy access in difficult to reach locations.
Specifications
| General | |
|---|---|
| Gas Detection | SF6 electrical equipment and gas, HFC, CFC, HCFC refrigerants, HFC (R134 and R123), halogen gas, ethylene, tetrafluoroethylene, trichloroethylene, and most compounds containing halogen. |
| Gas Detection Sensitivity | High: 0.2oz/yr (6g/yr); Low: 1.05oz/yr (30g/yr) |
| Probe Length | 502mm (19.8") |
| Sensor Type | Heated Diode |
| Warm_up Time | 2 minutes (approx.) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.3 × 2.8 × 1.4" (185 × 72 × 35mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 10.8 oz (305g) |
Resources & Support
Datasheet
Extech RD200 Datasheet
