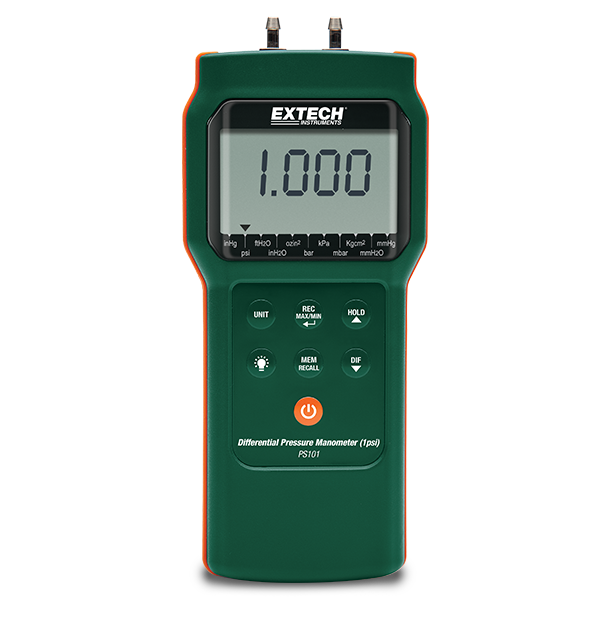

Extech PS101
Differential Pressure Manometer (1psi)
The Extech PS101 Differential Pressure Manometer is ideal for field, manufacturing, or lab/R&D use. It offers a 1 psi range, readings in 11 units, and high resolution. The manometer also features a large LCD display with backlighting, data hold, auto power off/disable, and a zero function for offset correction or measurement. This product is complete with 6 AAA batteries, two connection hoses, and a hard carrying case.
Specifications
| General | |
|---|---|
| Pressure [bar] | 0.069bar |
| Pressure [bar] Basic Accuracy | ±1% full scale |
| Pressure [bar] Max Resolution | 0.001bar |
| Pressure [ftH2O] | 2.307ftH₂O |
| Pressure [ftH2O] Basic Accuracy | ±1% full scale |
| Pressure [ftH2O] Max Resolution | 0.001ftH₂O |
| Pressure [inH2O] | 27.68inH₂O |
| Pressure [inH2O] Basic Accuracy | ±1% full scale |
| Pressure [inH2O] Max Resolution | 0.01inH₂O |
| Pressure [inHg] | 2.036inHg |
| Pressure [inHg] Basic Accuracy | ±1% full scale |
| Pressure [inHg] Max Resolution | 0.001inHg |
| Pressure [kgcm2] | 0.07kgcm ² |
| Pressure [kgcm2] Basic Accuracy | ±1% full scale |
| Pressure [kgcm2] Max Resolution | 0.001kgcm ² |
| Pressure [kPa] | 6.89kPa |
| Pressure [kPa] Basic Accuracy | ±1% full scale |
| Pressure [kPa] Max Resolution | 0.01kPa |
| Pressure [mbar] | 68.9mbar |
| Pressure [mbar] Basic Accuracy | ±1% full scale |
| Pressure [mbar] Max Resolution | 0.1mbar |
| Pressure [mmH2O] | 703mmH₂O |
| Pressure [mmH2O] Basic Accuracy | ±1% full scale |
| Pressure [mmH2O] Max Resolution | 1mmH₂O |
| Pressure [mmHg] | 51.7mmHg |
| Pressure [mmHg] Basic Accuracy | ±1% full scale |
| Pressure [mmHg] Max Resolution | 0.1mmHg |
| Pressure [ozin2] | 16.00ozin ² |
| Pressure [ozin2] Basic Accuracy | ±1% full scale |
| Pressure [ozin2] Max Resolution | 0.01ozin ² |
| Pressure [psi] | 1psi |
| Pressure [psi] Basic Accuracy | ±1% full scale |
| Pressure [psi] Max Resolution | 0.001psi |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.7 × 3.1 × 1.4" (169 × 78.3 × 34.4mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 7oz (200g) |
Resources & Support
Certification
Extech PS101 Declaration of Conformity
User Manual
Extech PS101 PS106 PS115 User Manual
Datasheet
Extech PS101 PS106 PS115 Datasheet
