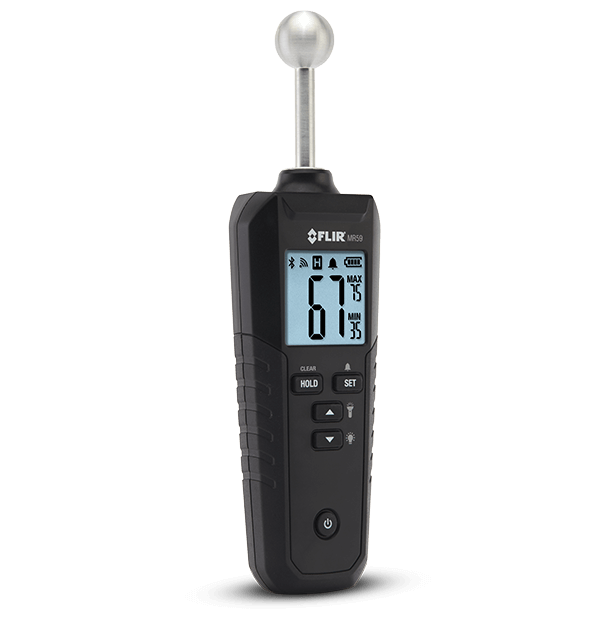

FLIR MR59
Ball Probe Moisture Meter with Bluetooth®
The FLIR MR59 is a pinless meter with wireless connectivity, which offers the convenience to view live readings from a mobile device via the FLIR METERLINK® App. Thanks to the ball-shaped sensor, users can cover a large area in a short time without making a mark; measure into corners and around baseboards easily; and detect problems below the surface.
Detect and map problems below the surface
The ball-shaped sensor helps you quickly cover a large area – or into corners and around baseboards – without leaving a mark.
Use Bluetooth® to view readings from a mobile device.
Take this durable, drop-tested meter to any job. Features a backlit display and bright worklight for dim light conditions.
Specifications
| Highlighted | |
|---|---|
| Display | Backlit, multifunction LCD |
| Measurement & Analysis | |
|---|---|
| Measurement Principle | Capacitive (non-invasive) |
| Pinless Measurement Depth | Up to 100 mm (4 in) depending on material under test |
| Pinless Moisture Range | 0 – 100% (Range), relative measurement (Accuracy) |
| Communication & Data Storage | |
|---|---|
| Connectivity | Bluetooth BLE; Communications Protocol: METERLiNK® |
| User Interface | |
|---|---|
| Display | Backlit, multifunction LCD |
| Power | |
|---|---|
| Auto Power Off [APO] | After 30 minutes |
| Battery Life | Typical 40 hours without worklight |
| Battery status indicator | 4-bar battery icon (100% to empty) |
| Battery Type | 9 V battery |
| General | |
|---|---|
| Dimensions | 240.5 × 67 × 38 mm (9.5 ×2.6×1.5 in) |
| Housing material | Impact-resistant plastic |
| Weight | 160 g (5.6 oz) battery excluded |
| Worklights | White LED |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, RCM, FCC/IC |
| Drop test | 2 m (6.6 ft) |
| IP Rating | IP40 |
| Warranty | Limited 3 years |
