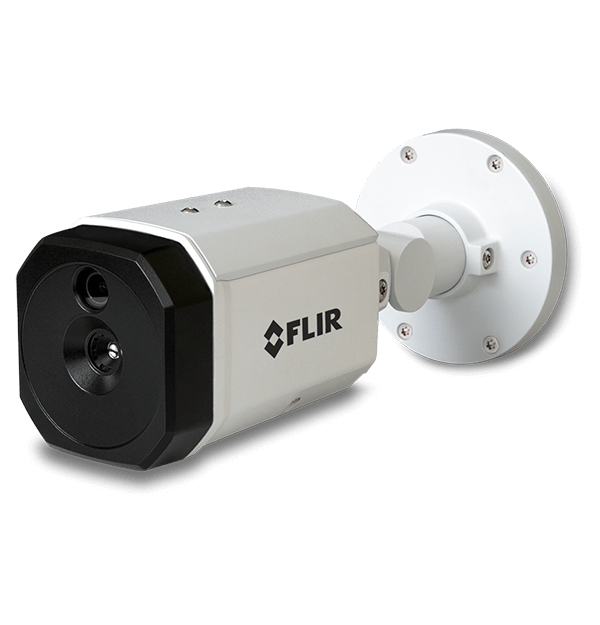

FLIR Elara™ FR-345-EST
Intelligent Fixed-Mount Skin Temperature Screening
The FLIR Elara FR-345-EST is an affordable, fixed-mount radiometric camera for accurately measuring skin temperature at medium- to high-throughput entry control points. Equipped with on-edge, intelligent face detection, Elara FR-345-EST issues on-screen prompts to individuals when they need to remove glasses, while also guiding them to the correct position for best measurement. The non-contact camera automatically locates and measures the inner canthus (corner of the eye) within one second and provides an instant pass/fail graphic to the individual. Integration with VMS systems further streamlines workflow and decision-making for facilities, while helping security personnel maintain a safe distance from potential health risks. Elara FR-345-EST does not require or save personally identifiable information (PII) for skin temperature screening.
Specifications
| Cyber Security | |
|---|---|
| Security | IEEE 802.1x, TLS Authentication - control & streaming, Digest authentication, HTTPS encryption, Encrypted FW upload, Access control via firewall |
| Environmental | |
|---|---|
| Humidity | 0-95% relative |
| IP Rating [dust and water ingress] | IP54 |
| Operating Temperature Range | 15 to 45°C |
| Storage Temperature Range | -40 to 70°C |
| Vandal Resistance | IK10 |
| General | |
|---|---|
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
| Input Voltage | 12-30 VDC (±10%), 24 VAC (21-28 VAC), 802.3at (PoE+) |
| Model | 345 |
| Power Consumption | 17 W |
| Visible Sensor Type | null |
| Measurement & Analysis | |
|---|---|
| Accuracy [Drift] in Screening Mode | ±0.5°C (±0.9°F) |
| Object Temperature Range | 15 to 45°C (59 to 113°F); camera provides contrast from -20 to 120°C (-4 to 248°F) but will not provide temperature information |
| Screening Mode Subject Distance | null |
| System Integration | |
|---|---|
| Digital I_O | Input: one dry alarm contact
Output: one photo relay contact 1A max at 24 VAC/30 VDC |
| Ethernet | 10/100 Mbps |
| Network APIs | FLIR SDK
FLIR CGI ONVIF Profile S |
| Streaming Resolutions | Thermal: upscaled to VGA (640 × 480)
Visible: 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480) |
| Thermal Camera | |
|---|---|
| Array Format [NTSC] | 320 x 256 |
| Field of view [FOV] | 45° × 34° |
| Focal Length | 4 mm |
| Lens Field of View | HFOV = 75°
VFOV = 44° |
| Optical Characteristics | |
| Pixel Pitch | 17 µm |
| Thermal f number | null |
| Thermal Frame Rate | 20Hz |
| Visible Camera | |
|---|---|
| Field of view [FOV] | 45° × 34° |
| Focal Length | 4 mm |
| Lens Field of View | HFOV = 75°
VFOV = 44° |
| Sensitivity | 0.05 Lux (at f1.6 AGC ON, 30FPS) |
| Visible f number | 1.6 |
| Video & Recording | |
|---|---|
| Video Compression | Two independent channels of H.264 or M-JPEG for visible
One channel of H.264 or M-JPEG for thermal |
