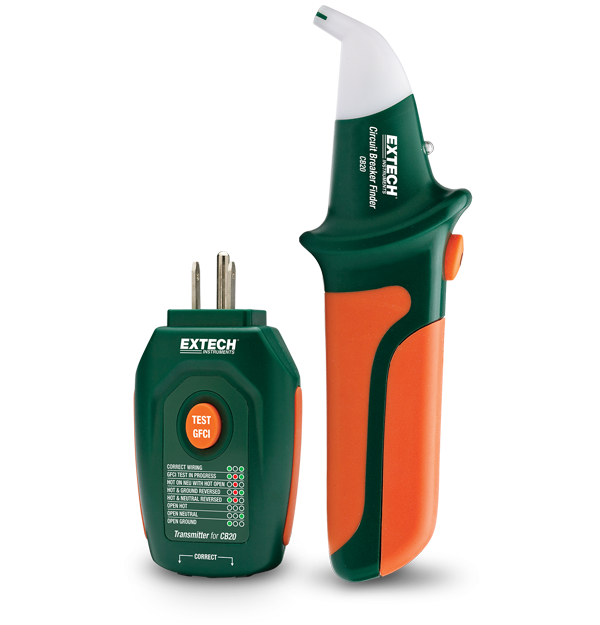

Extech CB20
Circuit Breaker Finder/Receptacle Tester
Locate the correct circuit breaker or fuse without turning off the power with the Extech CB20 Circuit Breaker Finder, which employs automatic sensitivity to quickly and accurately pinpoint the correct 90 V to 120 VAC circuit breaker or fuse. The CB20 is ideal for a range of applications including locating branch circuit breakers without causing accidental power shutoffs, confirming proper wiring during electrical installation or repair, and testing receptacle ground fault operation. Complete with receiver, transmitter, and a 9 V battery.
Specifications
| General | |
|---|---|
| AC Voltage | 90 to 120V |
| Frequency | 47 to 63Hz |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Transmitter: 4.6 × 2.4 × 1.4" (118 × 60 × 35mm); Receiver: 7.7 × 2.2 × 1.4" (196 × 55 × 36mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | Transmitter: 3.2oz (91g); Receiver: 4.8oz (136g) |
Resources & Support
User Manual
Extech CB20 User Manual GB
Certification
Extech CB20 Declaration of Conformity
Datasheet
Extech CB20 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
