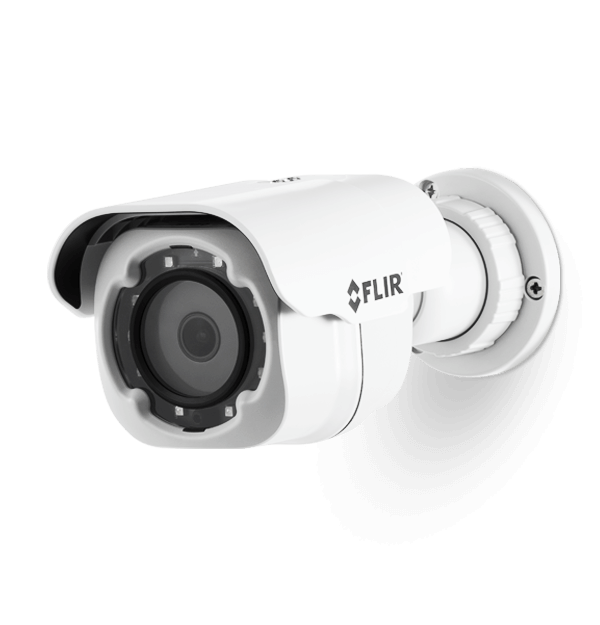

Ariel Full HD Bullet
1080p WDR Bullet Camera
The Ariel CB-3102 camera features FULL HD 1080p video that guarantees frame rates in high motion, complex and low light scenes, and lowers overall utility costs and carbon footprint. The Ariel CB-3102 delivers predictable storage, reducing the Total Cost of Ownership. The camera easily handles wide variations in motion and lighting found in airports, city surveillance projects, critical infrastructure sites, commercial offices and campuses.
Specifications
| Cyber Security | |
|---|---|
| Security | User account with password protection and IP filter |
| Environmental | |
|---|---|
| Humidity | 90% (non-condensing) |
| Operating Temperature2 | -40°C to 50°C (-40°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| General | |
|---|---|
| AES | 1/7.5 to 1/10,000 (auto) |
| Day_Night Mode | Yes |
| Dimensions | CB-3102-01-I: 180 x 86 x 80 mm (7.08 x 3.39 x 3.15 in.) CB-3102-11-I: 215 x 86 x 80 mm (8.48 x 3.39 x 3.15 in.) |
| Enclosure | Indoor/Outdoor: IK7 rated vandal IP67 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 802.3af PoE |
| Power Connection | PoE |
| Power Consumption | CB-3102-01-I: 5W / 9W with heater and IR CB-3102-11-I: 8W / 12W with heater and IR |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Tamper Detection | Yes |
| Unit Weight | CB-3102-01-I: 0.45kg (0.98 lbs.) CB-3102-11-I: 0.675kg (1.49 lbs.) |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| PTZ | |
|---|---|
| Pan_Tilt_Rotate | 360, ±80° and 360 |
| System Integration | |
|---|---|
| Alarm In | CB-3102-11-I: 1 dry alarm contact |
| Angle of Illumination | Full 60° |
| Audio Input | CB-3102-11-I: G.711, AAC 8KHz 16bit |
| Ethernet | 10/100, auto sensing, half / full duplex (RJ45) |
| IR Distance | up to 30m (98 ft.) |
| LED Type | high efficiency SMD |
| Network Protocol | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Peak Emission Wavelength [nm] | 850.0 |
| Remote Configuration | via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 10+ |
| Thermal Camera | |
|---|---|
| DSS | 1/7.5 to 1/50 or 1/60 with up to 8x sensitivity boost in color or night mode |
| Image Sensor | 1/2.8" BSI CMOS |
| Wide Dynamic Range | On / Off - 3 levels |
| Visible Camera | |
|---|---|
| Backlight Compensation | On / Off |
| DSS | 1/7.5 to 1/50 or 1/60 with up to 8x sensitivity boost in color or night mode |
| Image Sensor | 1/2.8" BSI CMOS |
| Lens Type | CB-3102-01-I: Fixed 2.8mm, 102° HFOV, F1.8, D/N CB-3102-11-I: Varifocal 3-10mm, 92°-27° HFOV, F1.4, D/N, Motorized with auto-focus and auto-iris |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D |
| Sensitivity | 0.03 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | 2048 x 1536 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / ATW / Manual / One Push |
| Wide Dynamic Range | On / Off - 3 levels |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 @ 1080p + 720p + D1 (NTSC/PAL) |
| Rate Control | CVBR |
| Resolution Range | Scalable from D1 to FHD 1080p |
| SD Card Recording1 | microSDXC up to 128GB (Class 10) |
| Video Bandwidth | Configurable between 64Kbps and 20Mbps |
| Video Compression | Fully compliant multi-stream H.264 main/high profile + MJPEG |
| Video Motion Detection | Yes |
