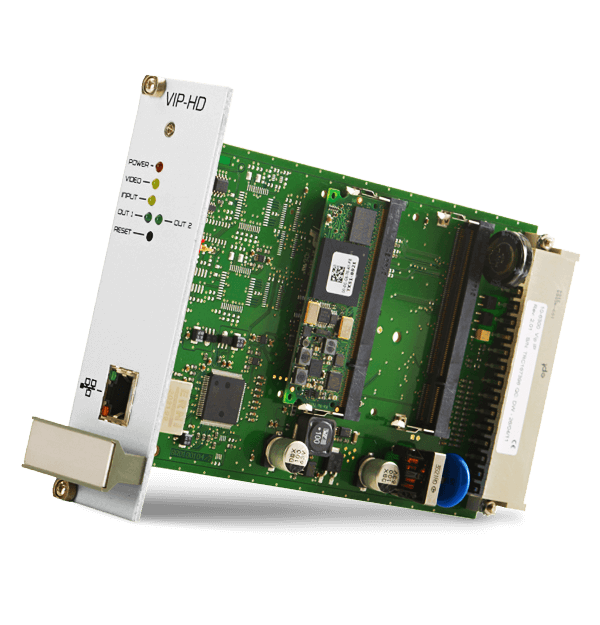

FLIR VIP-HD
AID and data collection board for IP cameras
The FLIR VIP-IP is a multi-functional Video Image Processing module for traffic control. VIP-IP boards process video input from D1 resolution IP cameras for automatic incident detection, data collection, recording of pre and post incident image sequences and streaming video (single H.264, MPEG-4, MJPEG). VIP-IP boards have been installed for road and tunnel projects all over the world.
Specifications
| System Overview | |
|---|---|
| AID | AID overlay |
| Boards per Rack | 8 in 19" Rack |
| Description | AID module for full HD IP cameras |
| Communications | |
|---|---|
| Audio | No |
| Communication Standards | SNMP |
| Data | No |
| Digital Inputs | 1 |
| Digital Outputs | 2 |
| Encoding Format | H.264, MPEG-4, MJPEG |
| LAN Connector Type | 10/100 Mbps RJ45 |
| Maximum Streams | Max 4 unicast or multicast |
| Multi_Streaming | Single H.264 or MPEG-4 or MJPEG |
| PTZ control | No |
| Video Input | IP video: up to full HD in H264 or MPEG-4 |
| Electrical | |
|---|---|
| Maximum resolution | Full HD (1920x1080) @ 30 fps |
| MTBF | 200,000 hrs |
| Power | < 4W |
| Stand_Alone Form | Box, 24 V DC (+/- 15%) |
| Environmental | |
|---|---|
| Operating Temperature | -34° to +74°C (-29° to 165°F) |
| Mechanical | |
|---|---|
| Boards per Rack | 8 in 19" Rack |
| Dimensions | 130 x 41 x 190 mm |
| Weight | 200 g |
