FLIR TG268
24:1 Spot IR Thermal Imaging Camera with Bullseye Laser and Type K Thermocouple
Top application
- Asset Reliability
- Building Diagnostics & Indoor Air Quality
- Electrical Inspection
- Liquid Leak Detection
£409.00 ex. VAT
£490.80 inc. VAT (20 %)

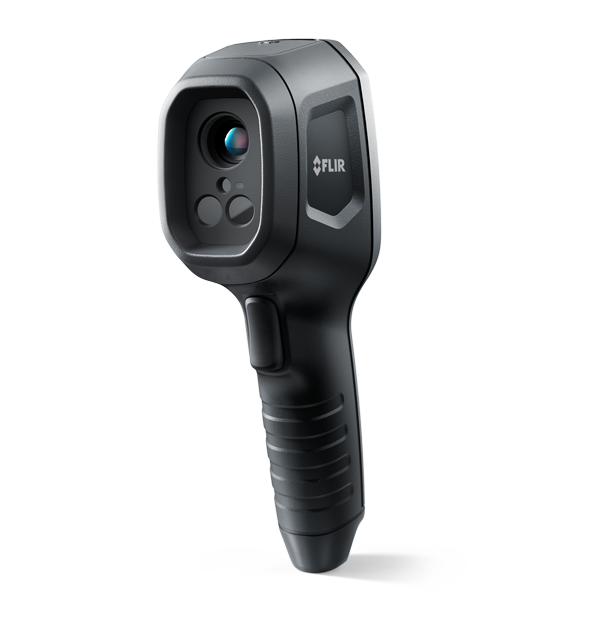

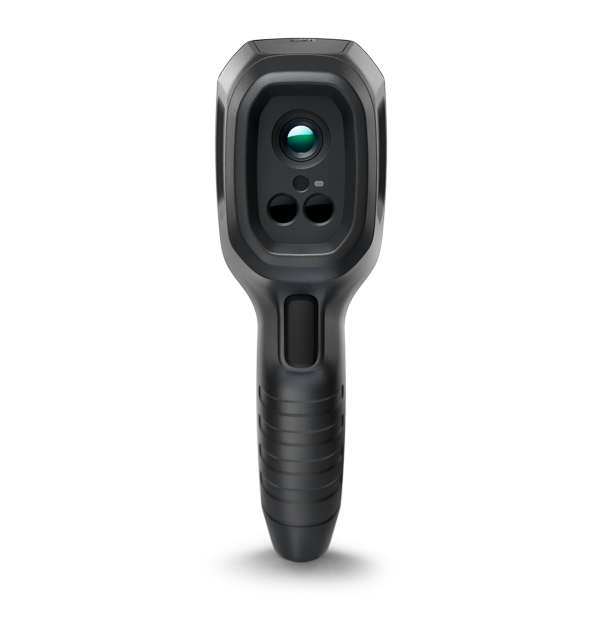

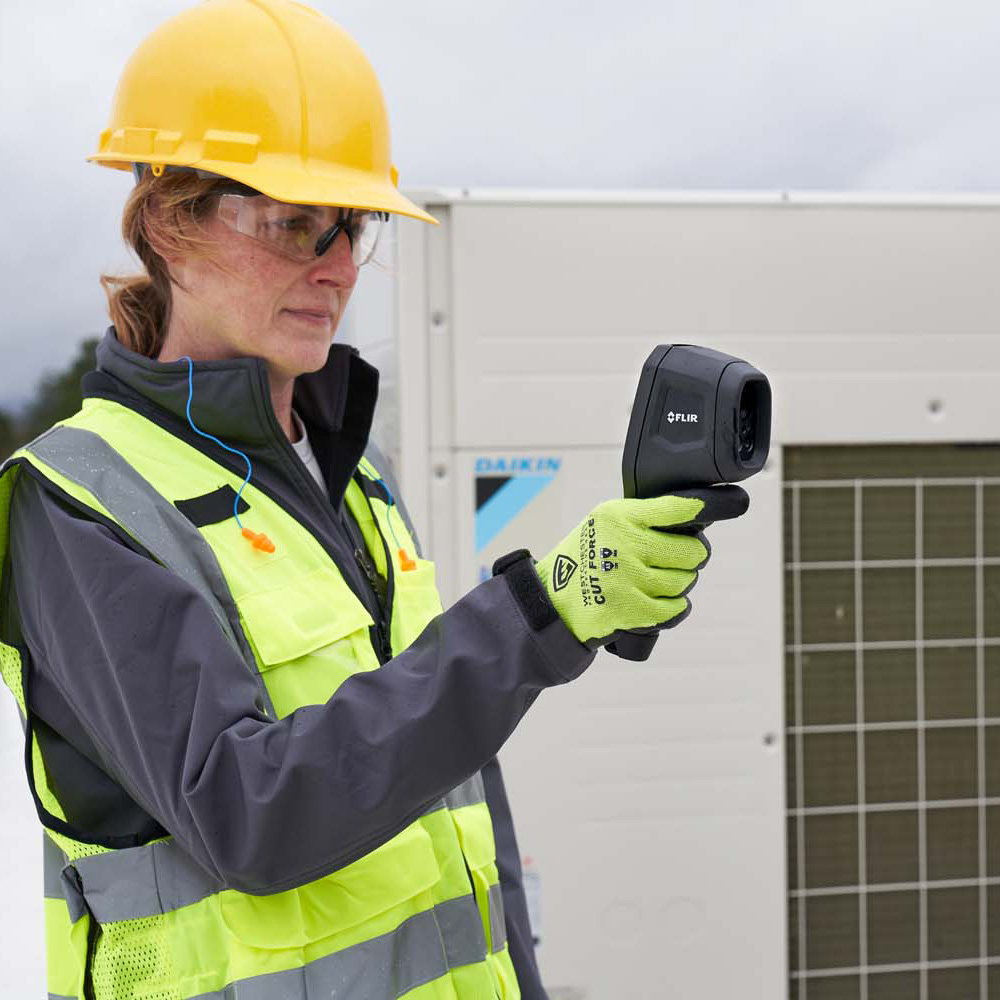

The FLIR TG268 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, automotive, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs. Then with the FLIR METERLiNK® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team.
Accurately measure temperatures up to 400°C (752°F) with a 24:1 spot size ratio and bullseye laser pointer
Diagnose problems quickly with FLIR-patented MSX image enhancement and Improve the details of native thermal images
with super resolution, which allows you to upscale images to 320 × 240 (76,800 pixels) resolution
The IP54 rated FLIR TG268 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, a Type K thermocouple, and a 2 m drop test rating for durability.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 160 × 120 Super Resolution 320 × 240 |
| Thermal Sensitivity_NETD | <70 mK |
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F) ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F |
| Field of view [FOV] | 57° × 44° |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
| Display | 320 × 240, 2.4 in color LCD |
| Storage Media | 8 GB |
| Imaging & Optical | |
|---|---|
| Built_in Digital Camera | Yes |
| Color palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital image enhancement | Yes |
| Field of view [FOV] | 57° × 44° |
| Focus | Focus free |
| Image Frequency | 8.7 Hz |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
| IR Resolution | 160 × 120 Super Resolution 320 × 240 |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Non_radiometric IR video recording | Yes |
| Spectral Range | 7.5 - 14 µm |
| Thermal Sensitivity_NETD | <70 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F) ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F |
| Camera size [L x W x H] | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera weight incl battery | 0.394 kg (13.9 oz) |
| Center spot | Yes |
| Measurement Option | Non-contact surface / contact with Type-K |
| Object Temperature Range | −25°C to 400°C (−13°F to 752°F) |
| User Interface | |
|---|---|
| Display | 320 × 240, 2.4 in color LCD |
| Communication & Data Storage | |
|---|---|
| Image Storage Capacity | 8 GB |
| Interfaces | USB 2.0, Bluetooth |
| Memory Type | Internal |
| METERLiNK | Yes |
| Saved image format | JPEG with spot temperature data |
| Storage Media | 8 GB |
| Time Lapse | Yes |
| USB | USB Type-C: data transfer/power |
| USB_Standard | USB 2.0 High Speed |
| Power | |
|---|---|
| Battery operating time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.7 V |
| Charging system | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 3 hours to 90%, 4 hours to 100% |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan |
| Drop test | Designed for 2 m (6.6 ft) |
| EMC | EN 61000-6-3 EN 61000-6-2 FCC 47 CFR Part 15 Class B |
| Encapsulation | IP 54 (IEC60529) |
| Humidity [operating and storage] | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Radio Spectrum | ETSI EN 300 328 FCC Part 15.249 RSS-247 Issue 2 EN 301 489-1:2011 EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | −30°C to 55°C (−22°F to 131°F) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | FLIR 2-10 warranty |
| General | |
|---|---|
| Form Factor | Pistol |
| Package Includes | TG268 Wrist Strap Lanyard Pouch USB Type-C cable Type-K Thermocouple Printed Documentation |
