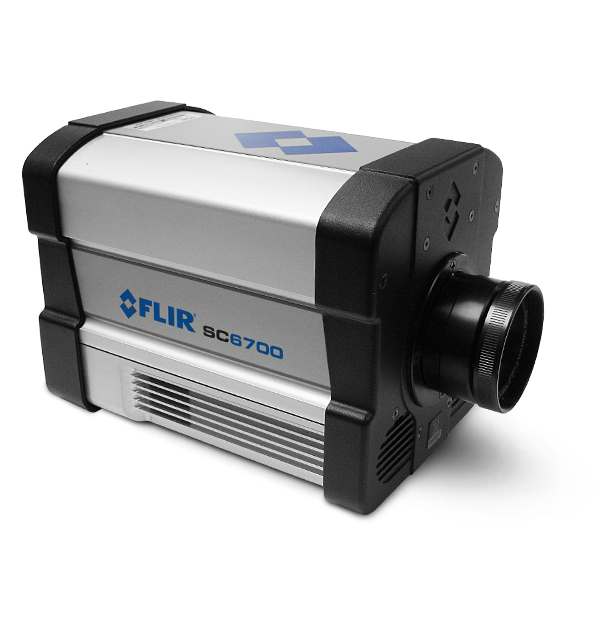

The FLIR SC6700 offers high-speed and high-resolution imagery in a flexible and easy-to-use package for just about any scientific or research application. The camera incorporates a cooled FLIR Indium Antimonide (InSb) detector that operates in the 3 to 5 or 1 to 5 micron waveband. Four active preset operating modes provide adjustable integration times, embedded non-uniformity correction, and bad pixel replacement. An exclusive SC6700 4-position motorized filter wheel permits effortless filter exchange in any environment.
Specifications
| Highlighted | |
|---|---|
| Resolution | 640 x 512 |
| Detector Pitch | 15 µm |
| Spectral Range | MWIR: 3.0 - 5.0 µm or 1.0 - 5.0 µm LWIR: 7.5 - 10.5 µm |
| Detector Type | Indium Antimonide (InSb) |
| Camera f_number | NA |
| Dynamic Range | 14-bit |
| NETD | MWIR: <20 mK (18 mK typical) LWIR: <30 mK |
| Frame Rate [Full Window] | Programmable 0.0015 Hz to 126 Hz |
| Max Frame Rate [at Min Window] | 4.175 kHz (16 x 4) |
| Integration Time | 480 ns to 687 sec |
| Standard Temperature Range | MWIR: -20°C to 350°C LWIR: -20°C to 650°C; Optional 250°C to 2000°C |
| Optional Temperature Range | Up to 1,500°C Up to 2,000°C |
| Imaging & Optical | |
|---|---|
| Available Lenses | NA |
| Camera f_number | NA |
| Detector Pitch | 15 µm |
| Detector Type | Indium Antimonide (InSb) |
| Digital Data Streaming | Simultaneous Gigabit Ethernet and Camera Link |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | Programmable 0.0015 Hz to 126 Hz |
| HD Video | NA |
| Image Time Stamp | Internal IRIG-B Decoder Clock / TSPI Accurate Time Stamp |
| Integration Time | 480 ns to 687 sec |
| Max Frame Rate [at Min Window] | 4.175 kHz (16 x 4) |
| NETD | MWIR: <20 mK (18 mK typical) LWIR: <30 mK |
| Resolution | 640 x 512 |
| Spectral Range | MWIR: 3.0 - 5.0 µm or 1.0 - 5.0 µm LWIR: 7.5 - 10.5 µm |
| Subwindow Modes | User-Defined |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1°C or ±1% of reading valid for 0°C to 3000°C on standard lens & filter configurations only |
| Optional Temperature Range | Up to 1,500°C Up to 2,000°C |
| Standard Temperature Range | MWIR: -20°C to 350°C LWIR: -20°C to 650°C; Optional 250°C to 2000°C |
| Communication & Data Storage | |
|---|---|
| Analog Video | NTSC, PAL, S-Video, SVGA |
| Synchronization Modes | Genlock; IRIG-B; Sync In, Sync Out |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -20°C to 50° C (-4°F to 122°F) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
