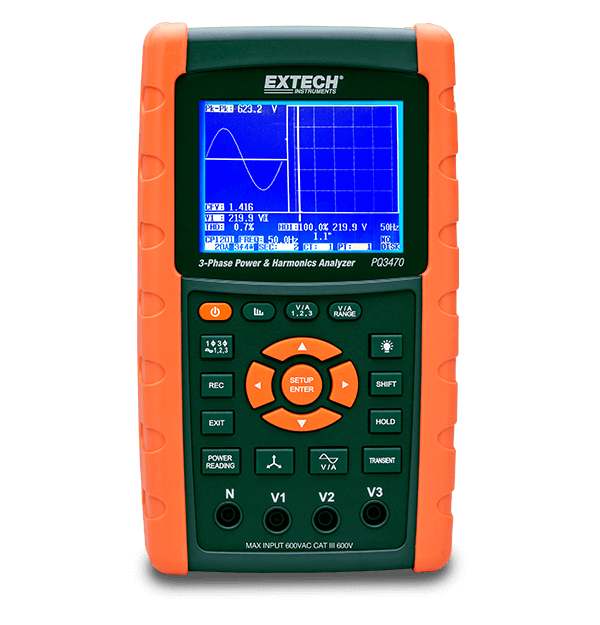

Extech PQ3470
3-Phase Graphical Power & Harmonics Analyzer/Datalogger
The Extech PQ3470 is a 3-phase Graphical Power and Harmonics Analyzer/Datalogger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, a wide sampling rate range (2 seconds to 2 hours), and a built in clock and calendar. It is capable of capturing transient events such as dip, swell, and outage with programmable threshold (%). Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100 V - 240 V AC adaptor, and a case. Clamp probes sold separately.
Specifications
| General | |
|---|---|
| AC Current | up to 3000A (depends on the current clamp probes used) |
| AC Current Basic Accuracy | ±(0.5% of reading) |
| AC Voltage | 600.0V |
| AC Voltage Basic Accuracy | ±(0.5% of reading) |
| Active Power | 9.999MW |
| Active Power Basic Accuracy | ±(1.0% of reading) |
| Active Power Energy | 0.0kWh to 9.999MWH |
| Active Power Energy Basic Accuracy | ±(2.0% of reading) |
| Apparent Power | 9.999MVA |
| Apparent Power Basic Accuracy | ±(1.0% of reading) |
| Apparent Power Energy | 0.0KVAh to 9.999MVAH |
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading) |
| Crest Factor | 1.00 to 99.99 |
| Crest Factor Basic Accuracy | ±(5%) |
| Frequency | 45Hz to 65Hz |
| Frequency Basic Accuracy | ±0.1Hz |
| Harmonics | 1 to 50th |
| Harmonics Basic Accuracy | ±2% (1 to 20); ±4% (21 to 31) |
| Input Range | 200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable) |
| Input Range Basic Accuracy | ±(0.5% of reading) |
| Memory | 30,000 readings (2GB SD memory Card) |
| Peak AC Current Basic Accuracy | ±(5%) |
| Peak AC Voltage Basic Accuracy | ±(5%) |
| Phase | -180 ° to +180° |
| Phase Basic Accuracy | ±1° |
| Power Factor | 0.00 to 1.00 |
| Power Factor Basic Accuracy | ±0.04 |
| Reactive Power | 9.999MVAR |
| Reactive Power Basic Accuracy | ±(1.0% of reading) |
| Reactive Power Energy | 0.0kVARh to 9.999MVARH |
| Reactive Power Energy Basic Accuracy | ±(1.0% of reading) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 8.86 × 4.92 × 2.52" (225 × 125 × 64mm) |
| Power | 8 × AA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 2.2lbs (1010g) |
