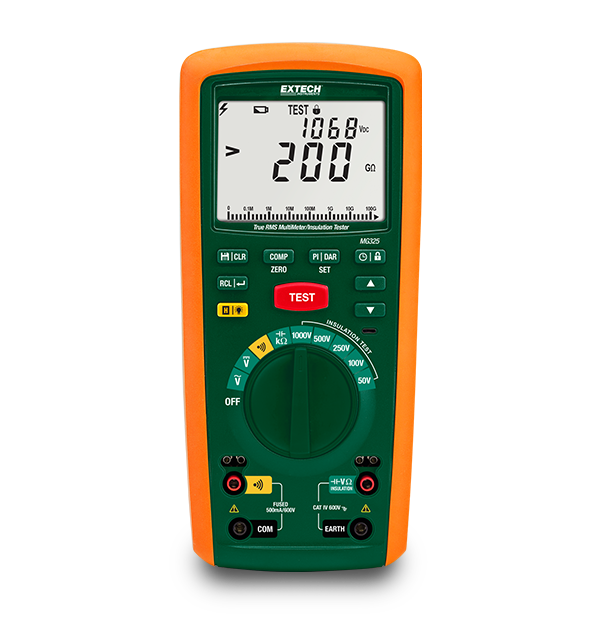

Extech MG325
CAT IV Insulation Tester/True RMS MultiMeter
The Extech MG325 combines a 200GΩ/1000 V high range insulation tester with a full-featured true RMS multimeter in a single, compact instrument. CAT IV safety rating ensures the highest level of protection.
Specifications
| General | |
|---|---|
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±(1.5% of reading + 5 digits) |
| AC Voltage Max Resolution | 0.01V |
| Capacitance | 500 µF |
| Capacitance Max Resolution | 0.1nF |
| Continuity | Yes |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±(2% of reading + 3 digits) |
| DC Voltage Max Resolution | 0.01V |
| Frequency | 1kHz |
| Frequency Basic Accuracy | ±(0.1% of reading + 3 digits) |
| Frequency Max Resolution | 0.1Hz |
| Insulation Resistance | 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ |
| Insulation Resistance Basic Accuracy | ±(3% of reading + 3 digits) |
| Insulation Resistance Max Resolution | 0.001MΩ |
| Insulation Test Voltage | 50V, 100V, 250V, 500V, 1000V |
| Insulation Test Voltage Basic Accuracy | 0 to 20% |
| Leakage Current | 2000µA |
| Leakage Current Basic Accuracy | ±(10% of reading + 3 digits) |
| Leakage Current Max Resolution | 10µA |
| Low Resistance | 100Ω |
| Low Resistance Basic Accuracy | ±(1.5% of reading + 5 digits) |
| Low Resistance Max Resolution | 0.01Ω |
| Resistance | 10MΩ |
| Resistance Max Resolution | 0.01kΩ |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.9 × 4.1 × 2.3" (225 × 103 × 59mm) |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 1.5lbs (0.7kg) |
